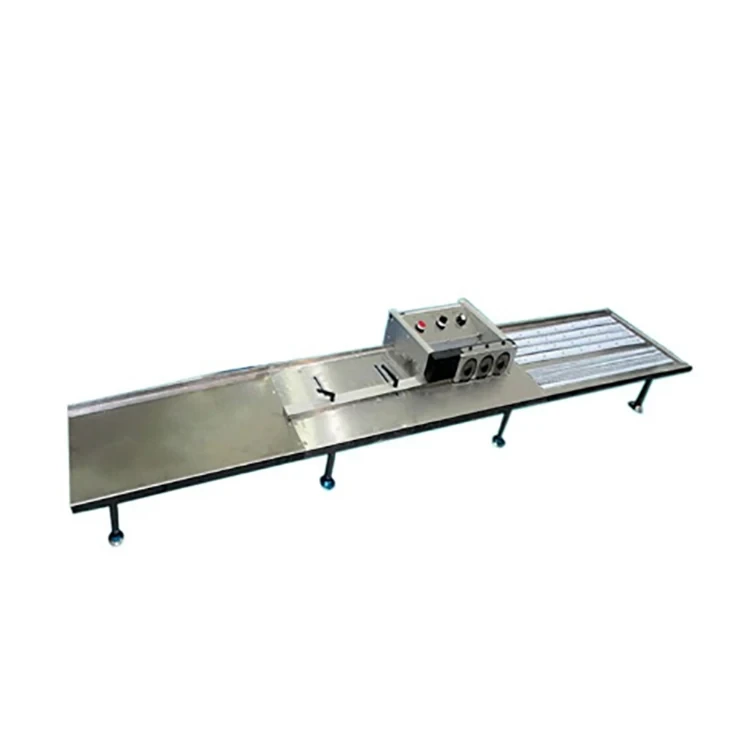

Automatic Curve Pcb Depanel Machine / Pcb V-cut Separator
5.0
Shipping:
Support Sea freight
Place of Origin:
China
Payments:
L/C,D/A,D/P,T/T,Western Union,MoneyGram,OA
Lead Time:
1-10(sets):10(days),>10(sets):To be negotiated(days)
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Parting speed
300 mm/s
Tool Material
Imported High Speed Steel
Tool Size
Cutter 125 mm*3 mm
Shape size L/W/H
990mm*550mm*1250mm
Thickness
1 mm-5 mm
Product name
Automatic PCB separator machine
Weight (KG)
50
Weight
36 kg
Warranty of core components
1 Year
Warranty
1 Year
Video outgoing-inspection
Provided
Showroom Location
Egypt, Italy, Peru, Russia, Chile
Place of Origin
Guangdong, China
Marketing Type
New Product 2020
Machinery Test Report
Provided
Core Components
PLC, Motor
Condition
New
Economical Custom Design SMT V Cut PCB Separator Machine
Product Description
Advantages:
1. 6 blades, a pair of upper and lower blades as a cutting unit, A,B,C three pairs. Cutting process includes four parts. Less stress is generated due to small cutting length in each part, reducing over 80% stress. Separated circuit board has neat edge and smooth surface.
Specifications:
Voltage:220/110V,50/60Hz
Power:40W
Maximum cutting length: Unlimited
Applicable range: PCB board, Aluminum board,FR1-4,
Fiberglass panels.
Applicable thickness: 0.5-3mm
Cutting speed: 80,120,200,300mm/sec.
Size(main engine):540mm*280mm*240mm
Size(whole machine):1250mm*400mm*240mm
(length extendable)
Weight:36kg
1. 6 blades, a pair of upper and lower blades as a cutting unit, A,B,C three pairs. Cutting process includes four parts. Less stress is generated due to small cutting length in each part, reducing over 80% stress. Separated circuit board has neat edge and smooth surface.
2. Multiple cutting makes cutting stable, largely improved positioning of V-CUT. V-CUT even with small depth won't break away from PCB board.
3. Less stress on blades, prolonging blade service life, thus reducing cost.
4. Applicable for LED aluminum board, copper board, luminous tube, light bar, display board, etc.
3. Less stress on blades, prolonging blade service life, thus reducing cost.
4. Applicable for LED aluminum board, copper board, luminous tube, light bar, display board, etc.
Specifications:
Voltage:220/110V,50/60Hz
Power:40W
Maximum cutting length: Unlimited
Applicable range: PCB board, Aluminum board,FR1-4,
Fiberglass panels.
Applicable thickness: 0.5-3mm
Cutting speed: 80,120,200,300mm/sec.
Size(main engine):540mm*280mm*240mm
Size(whole machine):1250mm*400mm*240mm
(length extendable)
Weight:36kg
