KOREA Hanwha High End Chip Mounter Machine L1 With Accuracy And Repeatability
Alignment of aerial camera and fixed camera
6 spindles x 1 gantry
Number of spindles
30,000 times/hour (optimal value)
Placement speed * chip
±40 microns @ Cpk ≥ 1.0 layout Accuracy
QFP
±30 microns @ Cpk ≥ 1.0
Aerial camera
0402~□21 mm components
Fixed lens
~55 mm, ~100 mm connector range; extent; distance
Maximum value. Height
12 mm (adjustable type), 25 mm (fixed type) "the smallest" L50×W40*
Standard dimensions of printed circuit board
510×510 (mm) (width)
Max. Options
~ Maximum dimensions: Length 1500 mm, Width 460 mm; Length 1500 mm, Width 510 mm
0.38 - 4.2
Thickness of printed circuit board (mm)
Feed line capacity standard
120 pieces / 112 pieces (for transport vehicles)
(Standard size of 8 mm)
Three-phase alternating current 200/208/220/240/380/415 volts power supply
Maximum 3500 volt-amps (for gas, water, electricity, etc.) public services
5.0 to 7.0 kilogram-force per centimeter
Air consumption
50 neon gas per minute (vacuum pump)
Standard height (900 mm)
Approximately 1600 kilograms
External dimensions (standard type)
Length 1430 mm x Width 1740 mm x Height 1995 mm
*For the option of 1500 mm, please contact our sales department★ Our best conditions
Product Overview
Shenzhen Yufuxin Technology Co., Ltd. attaches great importance to the design of thk grease gun. This product is strictly checked by our quality experts doing a series of tests. Shenzhen Yufuxin Technology Co., Ltd. constantly improve the production process and improve the control of product quality.
|

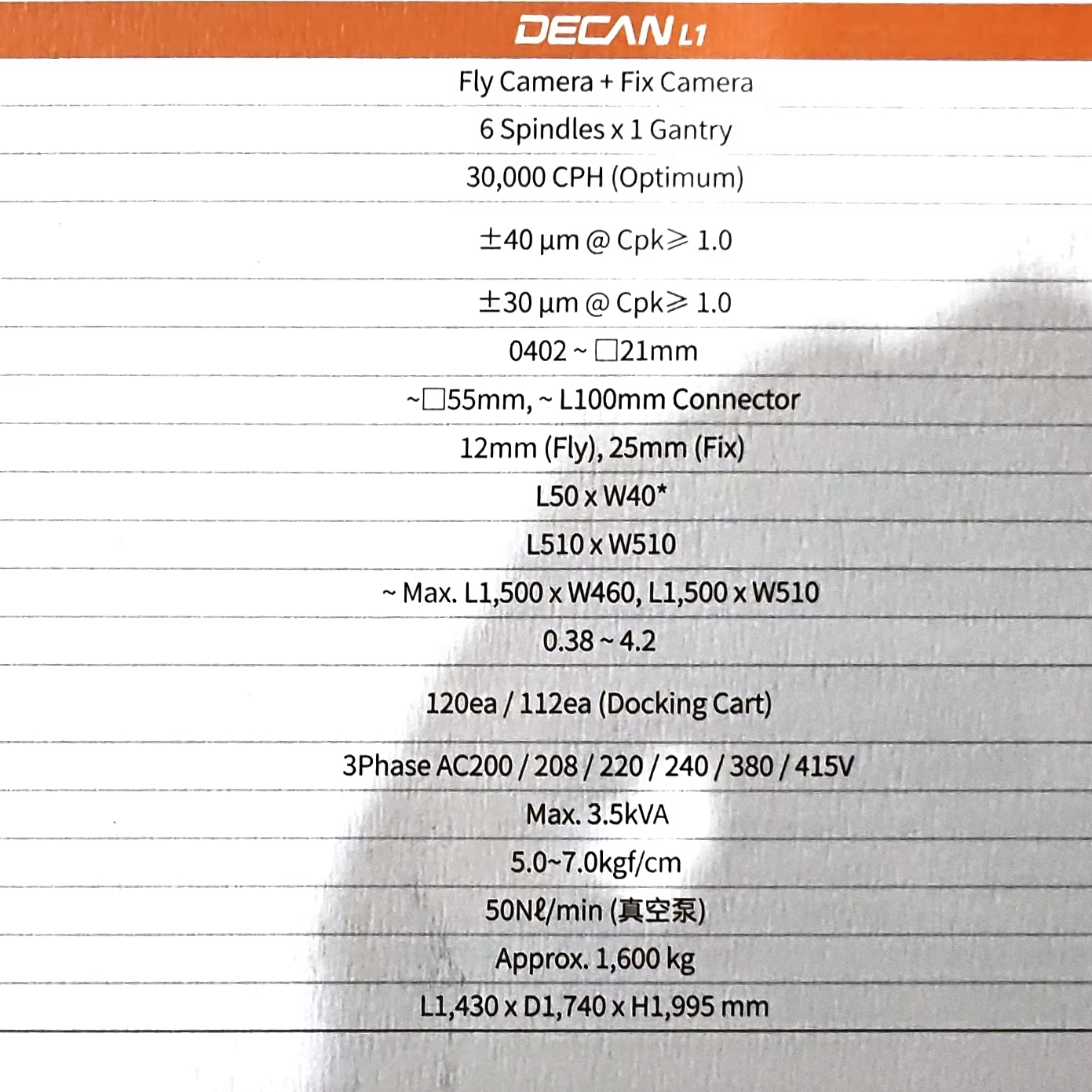

ModelName |
DECANL1 |
||
|
Alignment |
Fly Camera+Fix Camera |
||
|
The Number of Spindles |
6 Spindlesx1 Gantry |
||
|
Placement Speed* |
30,000 CPH(Optimum) |
||
|
Placement Accuracy* |
Chip |
±40μm @Cpk≥1.0 |
|
|
QFP |
±30μm@Cpk≥1.0 |
||
|
Component Range |
Fly Camera |
0402~21mm |
|
|
Fix Camera |
~,55mm,~L100mm Connector |
||
|
Max.Height |
12mm(Fly),25mm(Fix) |
||
|
PCB Size (mm) |
Min. |
L50×W40* |
|
|
Max. |
standard
|
L510×W510 |
|
|
OPTION |
~Max.L1,500×W460,L1,500xW510 |
||
|
PCB Thickness(mm) |
0.38~4.2 |
||
|
Feeder Capacity (8mm standard) |
Standard |
120ea/112ea(Docking Cart) |
|
|
Utility |
Power |
3Phase AC200/208/220/240/380/415V |
|
|
Max.3.5kVA |
|||
|
Air Consumption |
5.0~7.0kgf/cm |
||
|
50Ne/min(vacuum) |
|||
|
Weight(H900 mm standard) |
Approx.1,600 kg |
||
|
External Dimension(Standard) |
L1,430xD1,740×H1,995 mm |
||
Specification of Hanwha Chip Shooter
| Model | Hanwha SM471 Plus | Hanwha SM481 Plus | Hanwha SM482 Plus |
| Spindles | 10 Spindles ×2 Gantry | 10 Spindles ×1 Gantry | 6 Spindles ×1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H 15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x 400(W)(Standard) | Max. 460(L) x 400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
