Standard Smt Equipment Factory Direct Supply PCA Production
Product details of the smt equipment
Product Specification
New Product Set-up Time: 10 mins
PCB Thickness Adjustment: width reduced to 310 mm
Core Components: PLC, Motor
Warranty of core components: 1 Year
Condition: New
Product Overview
With the support of our skilled professionals, the production process of YFX Machine smt equipment is rather efficient and meets the industry standard. This product is thoroughly inspected by our skilled QC team to rule out every possibility of defect. The smt equipment of YFX can meet the different needs of different customers. Shenzhen Yufuxin Technology Co., Ltd. will greatly value every suggestion from customers and make accordingly measures to improve.
Product Information
Compared with other similar products, our smt equipment has the following advantages.

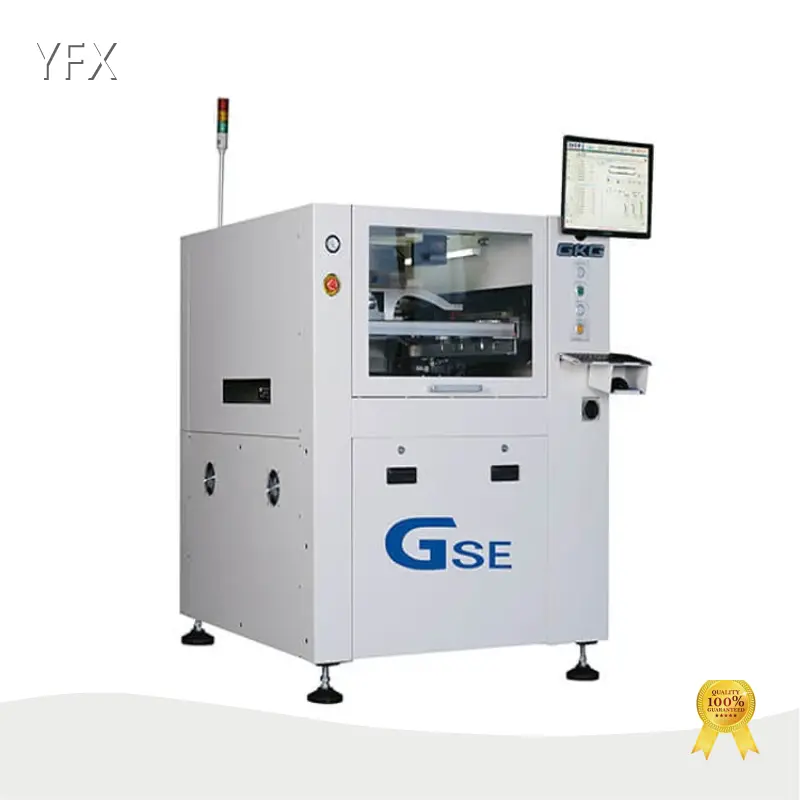

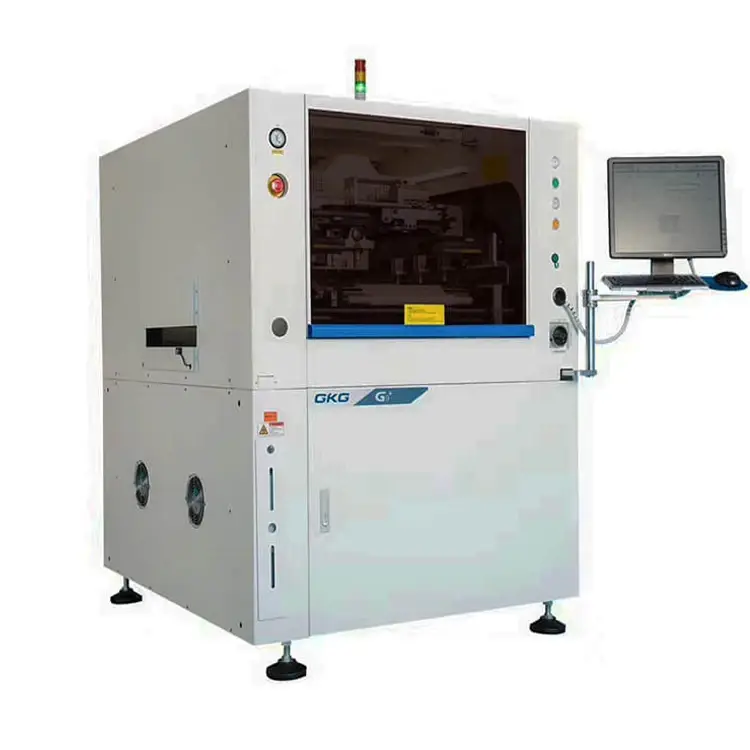

GKG GSE SMT Full Automatic GKG Solder Paste Printer for PCB printing
GKG GSE SMT Stencil Printer Full Automatic-Good Price! Good Quality! Good Service!
Automatic solder paste printer is a high-precision and high-stability automatic vision printer. GKG company follows the development trend of the SMT industry. The new generation of automatic vision printer is synchronized with international leading technology, high-resolution visual processing. , High-precision drive system, Suspending adaptive scraper, precise plate positioning processing and smart frame clamping structure, compact structure, both accuracy and high degree of flexibility, provide customers with efficient, accurate printing required Function, more customers provide a prominent price.
The main technical parameters:
(1) Printing accuracy: ±0.025mm
(2) Repeat accuracy: ±0.01mm
(3) Printing cycle: <7.5s
(4) Frame size from 420×520mm to 737×737mm
(5) Printable PCB size from 50×50mm to 400×340mm
Features:
1. The GKG dedicated manual adjustment jacking platform is simple, reliable, low-cost, and easy to adjust manually. It can quickly adjust the height of the PIN pin top of different thickness PCB boards.
2. Image and optical system New optical system - uniform ring light and high-brightness coaxial light, with brightness function that can be infinitely adjusted, making all types of Mark points can be well recognized (including uneven Mark Point) to adapt to tin, copper, gold, spray tin, FPC and other types of different colors of PCB.
3. Scraper system slide-type scraper system to improve operating stability and prolong service life
4. Cleaning System The new wiper strip ensures full contact with the stencil, and the large vacuum suction force guarantees that the solder paste remaining in the cell hole can be eliminated. The effective automatic cleaning function is achieved: three cleaning modes of wet and dry vacuum, and the software is free to use Set the cleaning mode and cleaning paper length
5. Steady steel net fixing structure
6. Perfect 2D detection system
1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;
New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;
2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure
for a little while can back again. According to the product flexible use
3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.
4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy
5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;
6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;
Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.
|
Item |
Parameter |
|
|
Repeat Position Accuracy |
±0.01mm(Test data and method are available) |
|
|
Printing Accuracy |
±0.025mm(Test data and method are available) |
|
|
Printing Speed / Cycle Time |
<8s (Exclude Printing & Cleaning) |
|
|
Products Changeover |
<5Min |
|
|
Screen Stencil Size/Min-Max |
470mm X340mm-737x737mm |
|
|
Screen Stencil Size/Thickness |
20mm ~ 40mm |
|
|
PCB Size/Min-Max/Thickness |
80X50mm-400x340mm/0.4~15mm |
|
|
PCB Warpage Ratio |
<1%(Based on diagonal length) |
|
|
Bottom of Board Size |
15mm(Standard configuration), 25mm |
|
|
Edge of Board Size |
3mm |
|
|
Conveyor Height |
900±40mm |
|
|
Conveyor Direction |
Left-Right; Right-Left; Left-Left; Right-Right |
|
|
Conveyor Speed |
100-1500mm/sec Programmable control |
|
|
Board Positioning |
Support System |
Magnetic pin/Side support block/Flexible automatic pin(optional) |
|
Clamping System |
Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting |
|
|
Print head |
Two indepandent Motorised printheads |
|
|
Squeegee Speed |
6~300mm/sec |
|
|
Squeegee Pressure |
0-10kg software control(closed-loop pressure feedback), pressure value visible |
|
|
Squeegee Angle |
60°(Standard )/55°/45° |
|
|
Squeegee Type |
Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized. |
|
|
Steel Mesh Separation Speed |
0.1~20mm/sec Programmable Control |
|
|
Cleaning Method |
Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods) |
|
|
Table Adjustment Range |
X:±3mm; Y:±7mm θ:±2° |
|
|
Type of Fiducial Point |
Standard geometry shape of fiducial point, bonding pad / Stencil hole |
|
|
Camera System |
Single digital camera for upward/downward vision system |
|
|
Air Pressure |
4~6Kg/cm2 |
|
|
Air Consumption |
Approx 0.07m3 /min |
|
|
Control Method |
PC Control |
|
|
Power Supply |
AC:220±10%,50/60HZ 1Φ 1.5KW |
|
|
Machine Dimensions/Weight |
Depends on exactly model |
|
|
Operation Temperature |
-20°C ~ +45°C |
|
|
Operation Humidity |
30%~60% |
|
FAQ
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. Gold supplier on Alibaba !
B. Trade assurance to US$54,000 !
C. Best price & Best shipping & Best service !
