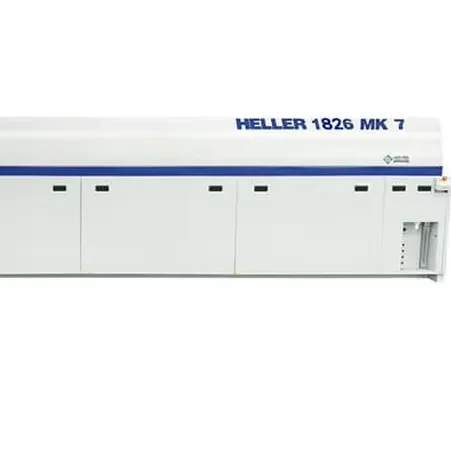

Heller 1826 Mk7 Smt Reflow Oven
The Heller 1826 Mk7 Smt Reflow Oven is specifically engineered for precise and efficient soldering of electronic components onto circuit boards, guaranteeing high-quality production with its advanced temperature control and conveyor system.
Heller 1826 MK7 SMT Reflow Oven
The 1826 MK7 is a high volume reflow oven system with 8 heated zones and belt speeds up to 1.88m/min. The 1826 MK7 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options. The 12” wide heater modules offer profile compatibility with competitor systems.
Built-in Thermal Monitoring
Nitrogen Capable to < 100 ppm
Energy Management System
Virtually No Maintenance
12” Wide Heater Modules
Key Features
Highest Yield Reflow Oven!
Lowest Delta T on the board
Lowest Nitrogen & Electrical Usage!
Maintenance Free!
VOID Free Reflow Oven – with Vacuum option
Industry 4.0 Compatibility
Integrated Cpk software at No Charge!
|
Machine Model |
Heller 1826MK7 |
|
Heating Zones |
Top 8 / Bottom 8 |
|
Cooling Zones |
Top 2 |
|
PCB Width |
50 - 560 mm |
|
Max Conveyor Speed |
188 cm/min |
|
Cross-Belt Temperature Tolerance |
± 2 ℃ |
|
Accuracy of Temperature Controller |
± 0.1 ℃ |
|
Conveyor Width Adjustment |
Manual Motor Control |
|
Operating System |
Windows 10 |
|
Overall Dimensions |
W4650 x D1520 x H1440 mm |
|
Typical Net Weight |
Approx. 1970 kg |
We are committed to producing the best quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
