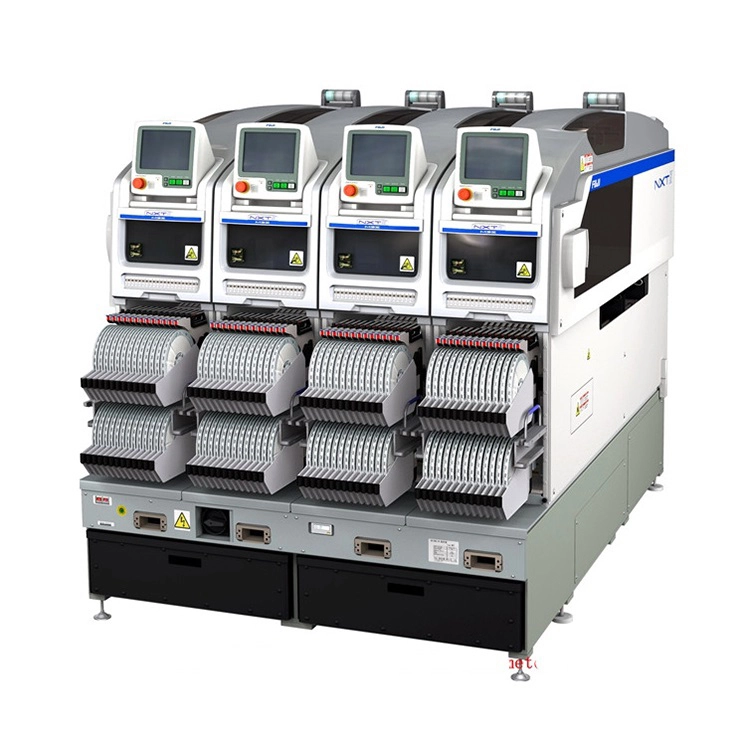

Fuji High Speed Smt Pick And Place Robot Automatic Pcb Chip Mounter Nxt Iii
Product Name: FUJI Fujitsu NXT First Generation M3/M6 Soldering Machine
Product Model: M3/M6
Brand: FUJI / Fujitsu
Origin: Japan / Japan
FUJI (Fujitsu) NXT Generation M3/M6 Solder Paste Printer Parameters:
PCB Size: Minimum: 48mm x 48mm; Maximum: 510mm x 534mm (double track)
Solder Paste Speed: H12HS: 22,500; H08: 10,500; H04: 6,500; H01: 4,200
Solder Paste Accuracy: H12S/H08/H04: 0.05mm (3sigma) cpk ≥ 1.00
Solder Paste Range: H12S: 0402 to 7.5x7.5mm; Height: MAX: 3.0mm
H08: 0402 to 12x12mm; Height: MAX: 6.5mm
H04: 1608 to 38x38mm; Height: MAX: 13mm
H01/H02/OF: 1608 to 74x74mm (32X180mm); Height: MAX: 25.4mm
G04: 0402 to 15.0mm x 15.0mm; Height: MAX: 6.5mm
Loading rack: MAX: 20 types/modules (converted from 8mm material strip)
Power supply: 3P / 200V / 10KVA
Air flow: 0.5MPa (5kgf/cm2), 10NI/min.
Dimensions: 2M II base: 740(L) x 1934(W)
4M II base: 1390(L) x 1934(W)
H: 1474 mm (M3 II) 1476 mm (M6 II/M6 IISP)
Machine weight: 1,350kg
Shenzhen Xinyinlong Electronic Technology Co., Ltd. focuses on providing the following SMT equipment and services to electronic manufacturers:
Complete SMT production line equipment such as printing machines, SPI, surface mounters, AOI, reflow soldering, etc.;
SMT peripheral equipment such as board handling machines, connection tables, coating machines, dispensing machines, receiving machines, etc.;
SMT spare parts and consumables such as fans, suction nozzles, boards, valves, belts, etc.;
Selected by over 600 electronic manufacturers in China, and 30+ professional SMT engineers provide you with a complete set of SMT production line services and solutions.
FUJI High Speed Smt Pick And Place Machine Automatic Pcb Chip Mounter NXT III
| M3 III | M6 III | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Applicable PCB size (LxW) | 48 x 48 mm to 250 x 510 mm (double conveyor)* 48 x 48 mm to 250 x 610 mm (single conveyor) *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode. |
48 x 48 mm to 534 x 510 mm (double conveyor)* 48 x 48 mm to 534 x 610 mm (single conveyor) *Double conveyors can handle PCBs up to 280 (W) mm. PCBs larger than 280 (W) mm must be produced by changing the double conveyor to single lane production mode. |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Part types | Up to 20 types of parts (calculated using 8 mm tape) | Up to 45 types of parts (calculated using 8 mm tape) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| PCB loading time | For double conveyor: 0 sec (continuous operation) For single conveyor: 2.5 sec (transport between M3 III modules), 3.4 sec (transport between M6 III modules) |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Placement accuracy (Fiducial mark standard) * The placing accuracy is obtained from tests conducted by Fuji. |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Productivity * The throughput above is based on tests conducted at Fuji. |
|
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Supported parts |
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Module width | 320 mm | 645 mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Machine dimensions | L: 1295 mm (M3 III x 4, M6 III x 2) / 645 mm (M3 III x 2, M6 III) W: 1900.2 mm, H: 1476 mm |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||
