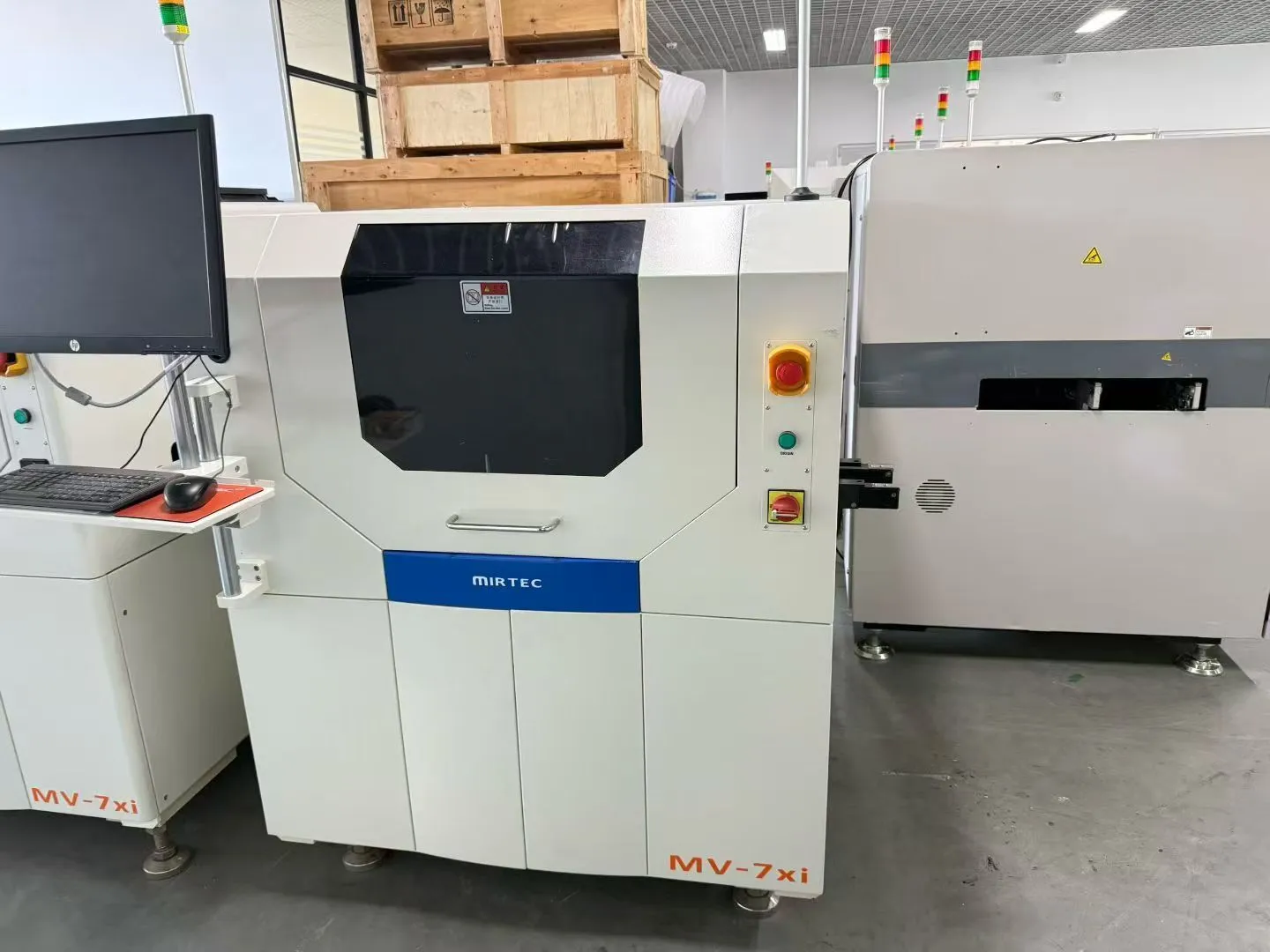

Korea Mirtec Online Aoi Mirtec-mv-7xi 1-year Warranty Manufacture 2014 Years
In combination with the Kohyoung KY8030-3 (SPI) you just asked about, MV-7Xi is its "partner" in the subsequent process: SPI solder paste printing and AOI final welding results.
I. Equipment Positioning and Core Capabilities
3D Inspection Capability: Not only 2D images, but also uses laser scanning or stereoscopic vision technology to obtain the height of components (Z-axis), which can effectively detect 2D defects that are difficult to detect such as coplanarity of BGA and pin warping.
High Precision Micro Components: Supports the detection of 01005-sized chips, suitable for high-density boards such as mobile phones and communication modules.
Four-Angle Illumination: The patented lighting system can effectively eliminate reflective shadows, improving the recognition rate of fine-pitch components and irregular components.
II. Key Performance Parameters
Parameter
Typical Indicators Note
Equipment type
Online 3D AOI
Post-reflow soldering inspection
Minimum component 01005 (0402 metric)
Miniature component inspection
Camera configuration
4MP overhead + side view camera
Some high-end models come with 5MP
Inspection contents
Missing parts, wrong parts, offset, polarity reversal, bent legs, solder bridge connections, etc.
Full defect coverage after welding
Software system MIRTEC MIPS / MultiView 3D
Support for CAD import for rapid programming
III. Logical coordination with the KY8030-3 production line
If you are planning the entire line equipment, the division of labor for these two machines is as follows:
KY8030-3 (SPI): Located after the printing machine, only detecting the volume, thickness, and deviation of the solder paste. The purpose is to intercept printing errors before soldering and feed back to the printing machine for closed-loop adjustment.
MV-7Xi (AOI): Located after the reflow soldering, detecting components and solder joints. The purpose is to intercept the errors caused by soldering and assembly before the board leaves the production line.
MIRTEC American-Land AOI Automatic Optical Inspection MV-7XI
Equipment dimensions (W*D*H): 1,100(W) x 1,500(D) x 1,500(H) mm
Equipment weight: 1200KG
Power requirements: Three-phase AC 200V - 420V / 50/60Hz
Air source requirement: 0.49 ± 0.05 Mpa
Equipment Overview: The MIRTEC MV-7xi online AOI inspection machine is equipped with a 4-megapixel overhead camera (with a resolution of 9.8 microns). Compared to the previous model, its inspection speed has increased by 1.8 times. It also features the patented "Four-Angle Illumination" that provides four independently programmable zones for providing illumination within the inspection area, enabling the inspection of 01005 components. DOM: 11/2014 Inline System 3 Stage Conveyor Maximum board: 20" x 18" 5 Camera System 10 Megapixel Digital Color Camera Precision Telecentric Compound Lens Design 9.8 Micron / Pixel Resolution Intelli-scan Laser Inspection System Four Point Height Measurement for Co-Planarity Testing of BGA and CSP devices 3-stage high speed conveyor system Pre and post reflow inspection capability
Parameters
Model number
MV-7XI
Inspect the PCB range MV-7xi 50 x 50 ~ 510 x 460 mm
Detect PCB thickness
0.5 ~ 3 mm
Field of View / Resolution
47.76 x 34.94 mm / 18.2um/pixel
Detection speed
3,479 mm²/Sec (0.26sec/frame)
Minimum detectable part
0402 Chip / 0.3 Pitch IC (mm) Testing items
Components are lifted, pins are lifted, Bridge, off-the-shelf parts, multi-tin, less-tin, no-tin, missing parts, skew, offset, polarity reversed, Manhattan/Tombstone, flipping, wrong parts, Pad Scratch, solder balls, foreign objects, QFP/BGA Package, etc. Inspection of the lower end off-the-shelf parts (laser option)
Main camera resolution
2,624 x 1,920 Pixels
Lighting 6 Phase Color Lighting, Quad Angle Lighting System
| item | value |
| Weight (KG) | 1200 |
| warranty | 1 Years |
| Machine Type | 2D AOI |
| place of origin | Korea |
