Manufacturer Electronic 8 Heads Smt Pick And Place Machine Led Pcb Making Machine
made in china pick and place machine

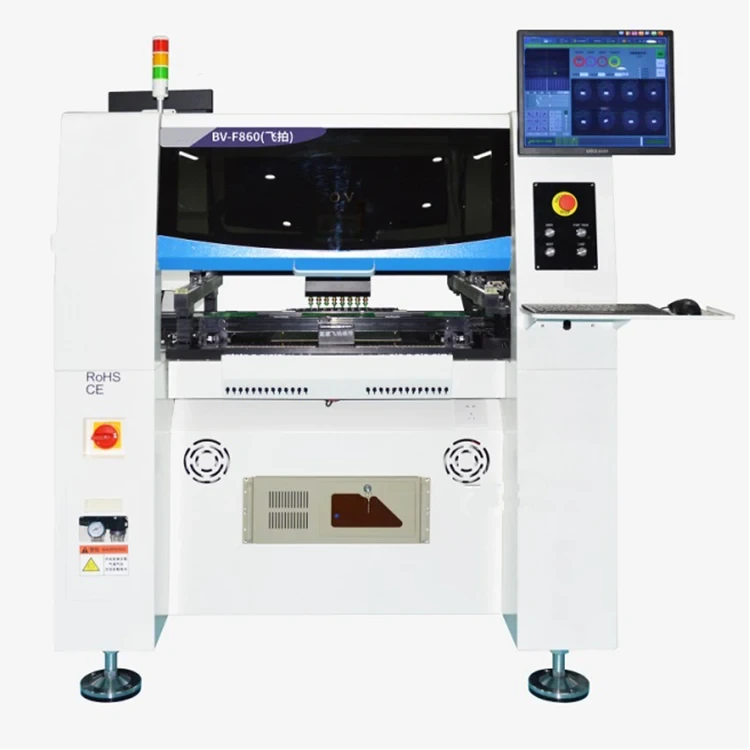

Manufacturer Electronic 8 Heads SMT Pick and Place Machine LED PCB Making Machine
|
Item |
model |
BV-F860 high speed |
|
1 |
operating system |
Support Windows XP, Win7 operating system |
|
2 |
software |
independent research and development |
|
3 |
Feeder No. |
52 |
|
4 |
Number of pallets |
10 Species |
|
5 |
Feeder No. |
8 |
|
6 |
Average Power |
650W |
|
7 |
Positioning |
0.01mm |
|
8 |
Driving Motor |
8 Independent closed loop (no step) |
|
9 |
Power Supply |
220V, 50Hz |
|
10 |
Anti-collision function of feed feeder |
support |
|
11 |
Drive motor |
Panasonic servo motor |
|
12 |
mount height |
support 0-10MM |
|
13 |
air compression |
0.5-0.6MPA |
|
14 |
Max. Circuit Board Area |
580*380M |
|
15 |
XY Max. Movement Range |
700*619mm |
|
16 |
Z Axis Max. Movement Range |
38mm |
|
17 |
Guide track adjustment mode |
Manual + automatic |
|
18 |
XYZ drive guide rail |
Imported WON high-precision ball screw rod + imported TBI heavy-duty linear guide |
|
19 |
Programming method |
Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
|
20 |
Dimensions |
1395*1180*1376M |
|
21 |
Open the cover alarm |
Speed reduction or shutdown |
|
22 |
Max. Mounting Speed |
30000 Pcs/h (No vision) |
|
23 |
Average Mounting Speed |
14000-20000 Pcs/hour(Open vision) |
|
24 |
Typical speed |
15000 Pcs/h(Open vision) |
|
25 |
Motion drive system |
Import of Japan high-speed DSP drive |
|
26 |
Product Weight |
1100KG |
|
27 |
Belt Type Feeder |
8,12,16,24 32 56mm 8/12/16/24mm feeders, stick feeder, tube chip |
|
28 |
MES abutment |
support |
|
29 |
Top plate function |
support |
We are committed to producing the best quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
