Original panasonic Used / New /Copy NPM CM 8-88mm Feeder Kxfw1ks10a00 Kxfw1ksga00
I. The Working Principle of Feida SMT Soldering Machine
The tape is fixed on the shaft of the feeder of the SMT machine, and the tape passes through the tape pressing device and enters the feeding slot. The upper tape is separated from the tape base by the separation plate and fixed to the take-up wheel. The synchronous holes on the tape base are fitted onto the synchronous wheel teeth, and the tape head reaches the outer end of the feeder. After the SMT feeder is installed in the feeding station, the soldering head sucks the components according to the program and gives a mechanical signal to the handle through the "feeding roller", causing the synchronous wheel to rotate by an angle, so that the next component is sent to the feeding position. 2. According to the feeding method. The Feeder type is generally belt type, tube type, or tray type (also known as waffle plate).
3. The packaging also distinguishes the width of the tape. Common widths include: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm and 52mm, etc. The spacing ranges from 2mm, 4mm, 8mm, 12mm and 16mm. The diameter of the spool is available in 7 inches and 13 inches.
The feeder is one of the most important components of a surface mount machine, and it is also a key part that affects the assembly capability and production efficiency in the assembly process. Some SMT surface mount machines directly use the number of available feeders as a criterion.
The SMT surface mount machine picks up the components from the feeder at the designated position according to the instructions. Since different types of mounting components use different packaging, and different packaging requires corresponding feeders, the following are the mainstream SMT surface mount machine feeders currently available on the market. According to the feeding method, the common types include the following:
I. The Working Principle of Feida SMT Soldering Machine
The tape is fixed on the shaft of the feeder of the SMT machine, and the tape passes through the tape pressing device and enters the feeding slot. The upper tape is separated from the tape base by the separation plate and fixed to the take-up wheel. The synchronous holes on the tape base are fitted onto the synchronous wheel teeth, and the tape head reaches the outer end of the feeder. After the SMT feeder is installed in the feeding station, the soldering head sucks the components according to the program and gives a mechanical signal to the handle through the "feeding roller", causing the synchronous wheel to rotate by an angle, so that the next component is sent to the feeding position. 2. According to the feeding method. The Feeder type is generally belt type, tube type, or tray type (also known as waffle plate).
3. The packaging also distinguishes the width of the tape. Common widths include: 8mm, 12mm, 16mm, 24mm, 32mm, 44mm and 52mm, etc. The spacing ranges from 2mm, 4mm, 8mm, 12mm and 16mm. The diameter of the spool is available in 7 inches and 13 inches.
The feeder is one of the most important components of a surface mount machine, and it is also a key part that affects the assembly capability and production efficiency in the assembly process. Some SMT surface mount machines directly use the number of available feeders as a criterion.
The SMT surface mount machine picks up the components from the feeder at the designated position according to the instructions. Since different types of mounting components use different packaging, and different packaging requires corresponding feeders, the following are the mainstream SMT surface mount machine feeders currently available on the market. According to the feeding method, the common types include the following:

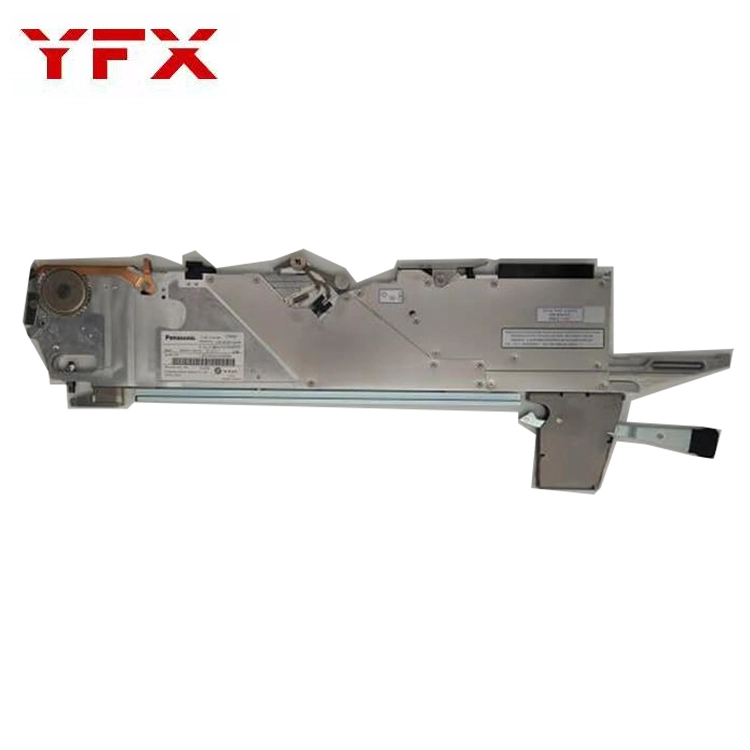

Used-Panasonic NPM CM 88mm Feeder KXFW1KS10A00 KXFW1KSGA00
|
Brand Name |
Panasonic NPM CM 88mm Feeder |
|
Part Number |
KXFW1KS10A00 |
|
Model |
KXFW1KSGA00 |
|
Warranty |
1 month |
|
Usage for Machine |
Panasonic CM402 CM602 NPM pick and place machine |
|
Ensure |
Test in machine before shippping |
|
Guarantee |
Original 100% and working |
|
Delivery Methods |
Ocean Transport, Air Transport, Air Express Services |
|
Delivery Terms |
EXW, FOB, CIF |
Tray Feeder Main Body :NPM N610074920AA
FRAME N210086707AB
BLOCK N210098923AA
COVER N210101303AC
PLATE KXFB015DA00
COVER N210108731AC
COVER N610088301AB
COVER N610088304AD
COVER N610097171AD
PLATE N210041128AB
BRACKET N210108582AC
COVER N210094818AD
COVER N210108965AA
GUIDE N210041138AB
GUIDE N210041139AB
BRACKET N210118750AB
COVER N210098801AA
GROMMET KXF0CF5AA00 C-30-NG-79-E
JOINT N510066700AA KQ2H08-00A
REGULATOR N510041163AA ARM10F2-20G
SPACER N510028624AA ASF-311E
JOINT N510066636AA KQ2UD04-06A
JOINT N510066671AA KQ2R04-06A
FAN-GUARD KXF0037AA00 S 109-019C
SCREW MTNK000943AA Cross recessed Truss head machine screw M4X6-4.8 A2S(Trivalent)(MEC t
SPACER N510029498AA ASF-444E
SPACER N510028623AA ASF-456E
SPACER N510019892AA ASF-412E
SPACER N510017101AA CB-425E
RUBBER-CUSHION MTNK003972AA DULRB-416
JOINT KXF0DWLVA00 KK3P-08H
BOLT N510017374AA Hexagon socket head cap screw M4X55-10.9 A2J (Trivalent)
FAN-GUARD KXF077MAA00 109-019E
FAN N610095898AA
