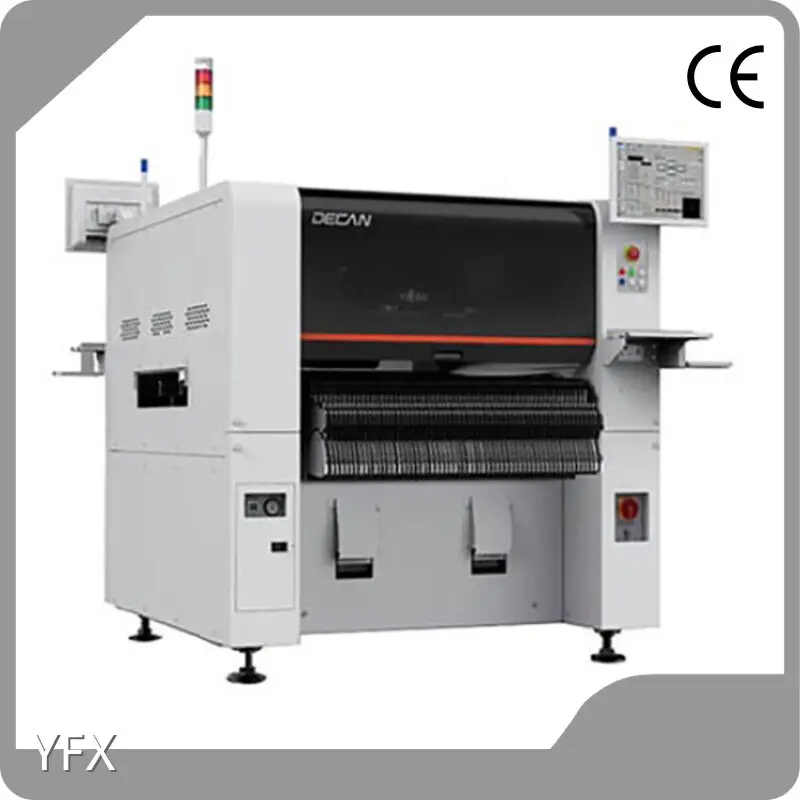

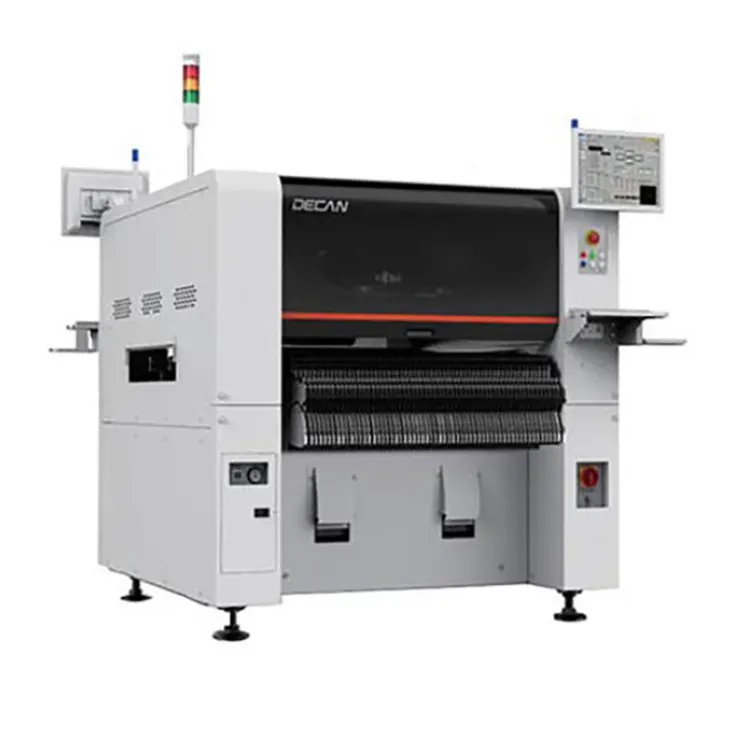

Cost-effective Smt Placement Equipment Series PCBA Production
product description
1 Enhance the convenience of device software management
2 Built-in * optimized software in the device, which can realize simple program creation / editing
3 Provides various job information through a large LCD screen
4 Highly convenient high-precision electric feeder
5 Calibration Free & Maintenance Free Electric Feeder
6 Improved ease of operation with the Single Feeder of Reel Bank's integrated structure
7 Through the automatic arrangement of the component pick-up position between the feeders, the actual production capacity can be improved
8 SMART FEEDER with automatic material receiving
9 The industry's first automatic feeding and automatic receiving function
Manual feed preparation and receiving operation changed to automatic method, which greatly shortened the operation time
Realize zero consumption of consumables for receiving materials
Product parameters
|
Speed |
92000CPH |
|
Accuracy |
CHIP 28um (03015), IC 25um |
|
Mountable components (mm) |
Chip 03015 ~ 5 axis: 12-h10 10 axis: 6-h10 Number of 4 shafts: 10 x 2 Head |
|
Fly Camera FOV |
20.5mm |
|
PCB size |
50 x 40 ~ 510 x 460mm Max. 740 x 460 mm (1,200 x 460 mm) |
|
Material station |
120ea |
|
Equipment weight |
1,800kg |
|
Device size (mm) |
1,430 (L) x 1,740 (D) x 1,485 (H) |
|
Power |
3 phase AC 200/208/220/240/380 / 415V ± 10%; 50 / 60Hz; Max. 5.0 Kva |
Company Advantages
· The production of YFX Machine smt placement equipment is ensured by a complete and scientific modern production model, which is a highly efficient way to ensure the production of the product.
· This product is highly demanded worldwide due to its wide range of functions and specifications.
· The product has a wide application in many fields and possesses a great market potential.
Company Features
· As a qualified manufacturer of producing smt placement equipment, Shenzhen Yufuxin Technology Co., Ltd. has served the market for many years and has been recognized as a competitive supplier.
· Equipped with a complete set of quality control technology, smt placement equipment can be guaranteed with good quality.
· We focus on cutting-edge production technology to create the best value for our customers. Ask online!
Application of the Product
YFX's smt placement equipment is widely used in various industries and fields.
With a focus on customers' potential needs, YFX provides customers with one-stop solutions.
