As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
Speed 40,000 CPH
PCB : Max. 460(L) x400(W)
Weight: 1400KG
Component available: 0402 ~ 14mm(H 12mm)

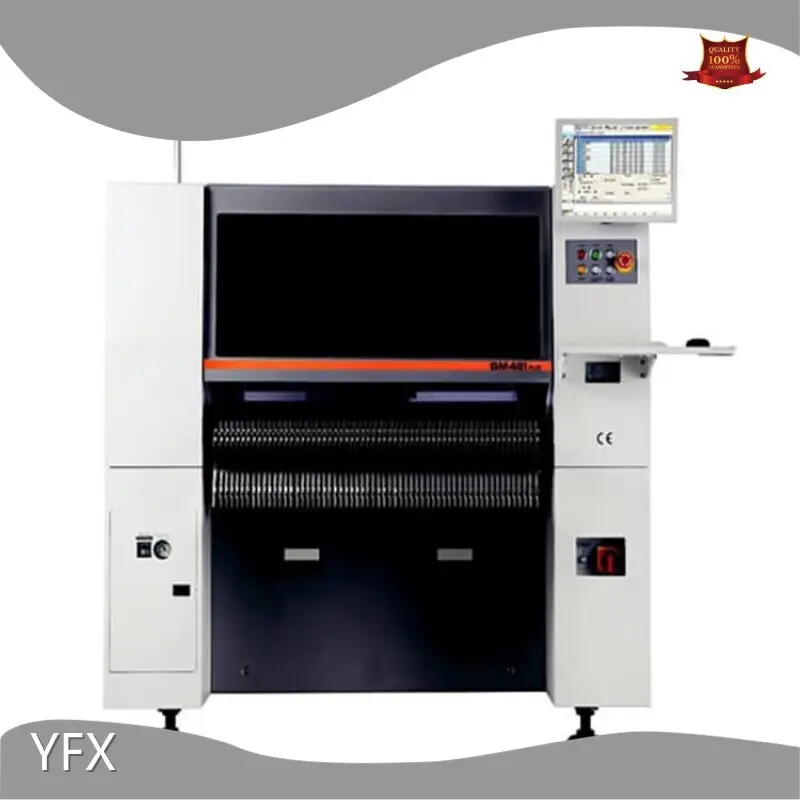

Product description: Hanwha SM481 PLUS Pick and Place Machine, Speed 40,000 CPH, PCB: Max. 460(L) x400(W), Weight: 1400KG, Component available: 0402 ~ 14mm(H 12mm)
product information
| Specifications | SAMSUNG SMT pick and place machine | ||
| Model Name | SM471plus | SM481plus | SM482plus |
| Alignment | Flying Vision | Flying Vision+stage vision | Flying Vision+stage vision |
| Spindles | 10 Spindles × 2 Gantries | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H 15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB(L × W) | Max. 510 × 460(Standard) | Max. 460 × 400(Standard) | Max. 460 × 400(Standard) |
| Max. 610 × 460(Option) | Max. 1500 × 460(Option) | Max. 1200 × 510(Option) | |
| Dimension(L.D.H) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
| Mass(Kg) | Approx. 1820 | Approx. 1655 | Approx. 1600 |
