Product details of the smt manufacturing equipment
Product Specification
Weight (KG): 100
Marketing Type: New Product 2020
Usage: Semi-Automatic
Machinery Test Report: Provided
Quick Detail
smt manufacturing equipment is trusted by customers because of their high quality and excellent performance. Product quality is guaranteed because of the rigorous quality control process that effectively eliminates defects. smt manufacturing equipment of YFX is widely used and has a wide range of applications. Shenzhen Yufuxin Technology Co., Ltd. is committed to providing customers with high quality and competitive products and services.
Product Introduction
YFX's smt manufacturing equipment is of exquisite workmanship, which is reflected in the details.

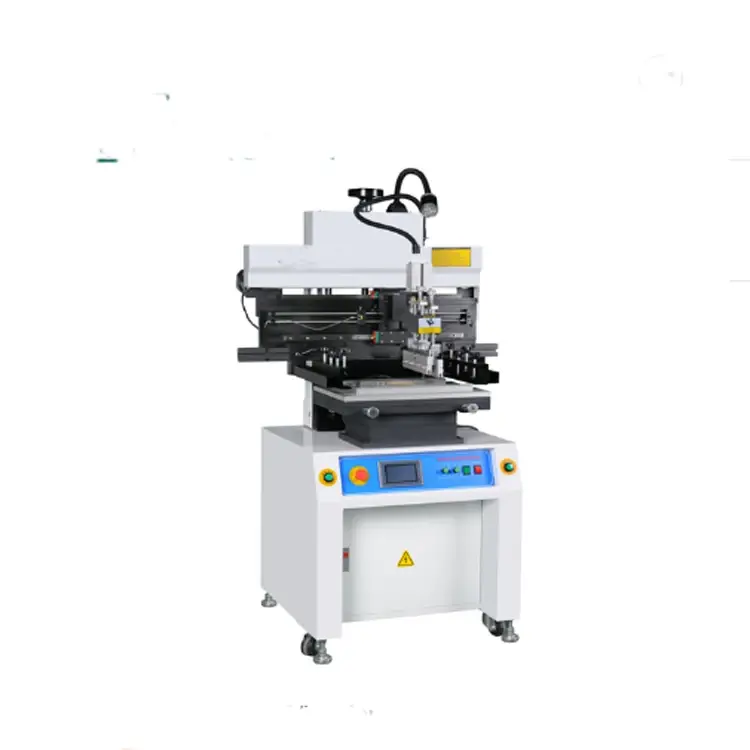

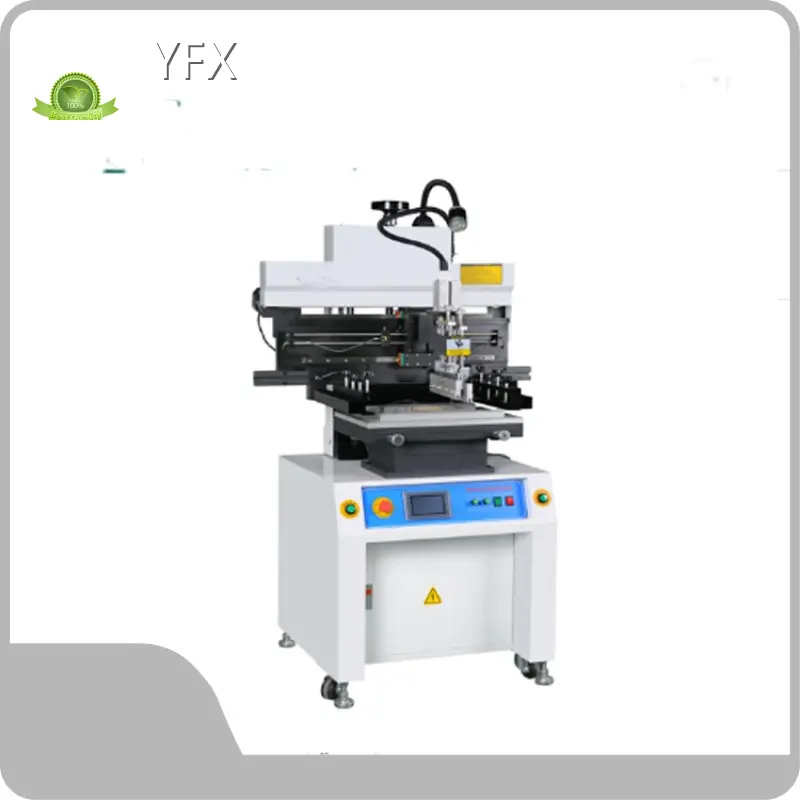

Semi Automatic SMT Stencil Printer/ PCB Screen Printing Machine

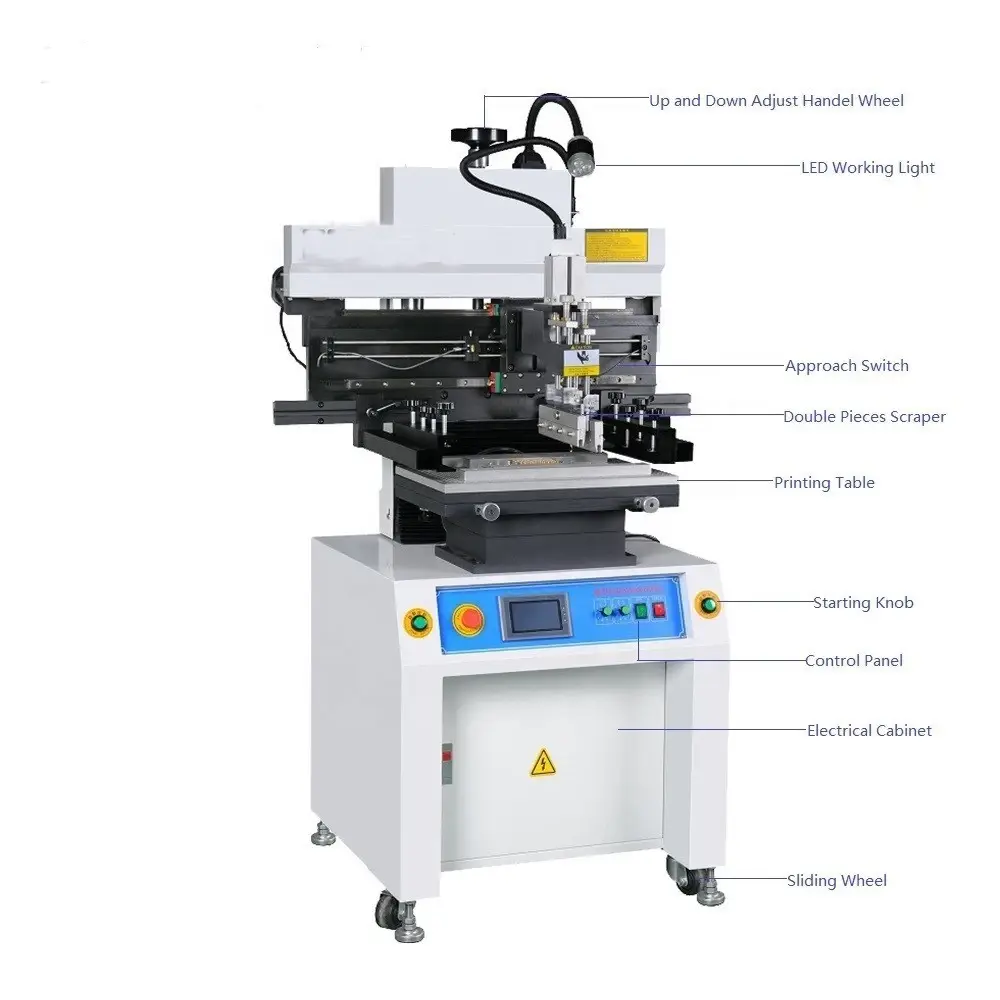

Main Features of SMT Stencil Printer Machine:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
|
Specifications
|
SMT Stencil Printer Machine
|
|
Working area
|
300*400-300*400mm(300*600mm,300*1200mm)
|
|
Frame size
|
370*470mm,420*520mm,550*650mm,1500*650mm
|
|
PCB thickness
|
0.2-4.0mm
|
|
Voltage
|
Single phase 220V,50/60Hz,100W
|
|
Accuracy
|
+/- 0.05mm
|
|
Machine size
|
L1750*W1100*Hl650mm
|
|
Gross weight
|
450kg
|
Keywords:
SMT Stencil printer, SMT solder paste printer, SMT printing machine, SMT PCB printer, 600mm Solder paste printer, 1200mm solder paste printer, Solder paste printer, GKG stencil printer, GKG printer.
