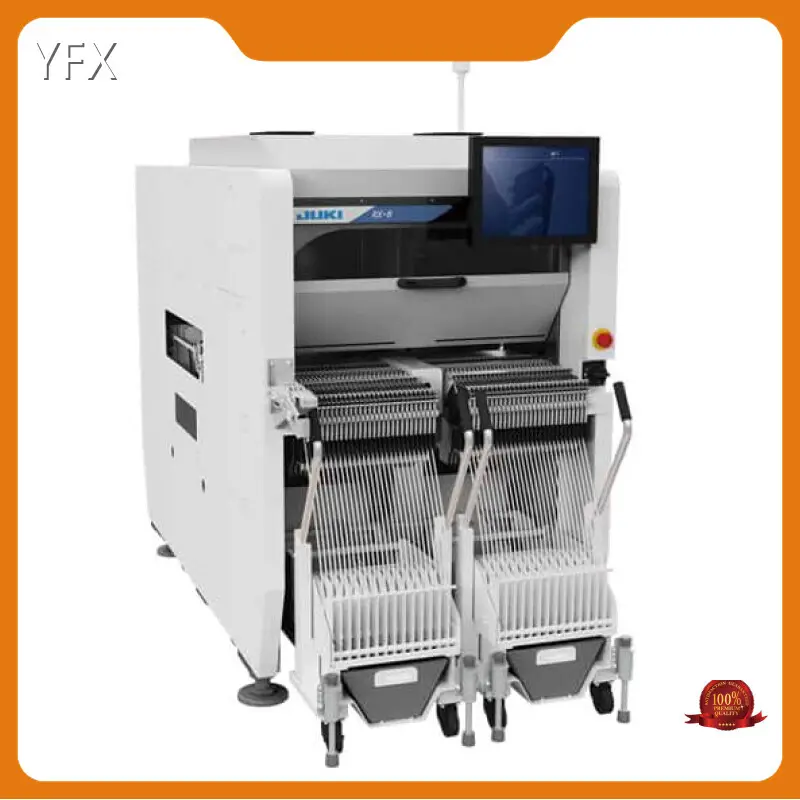

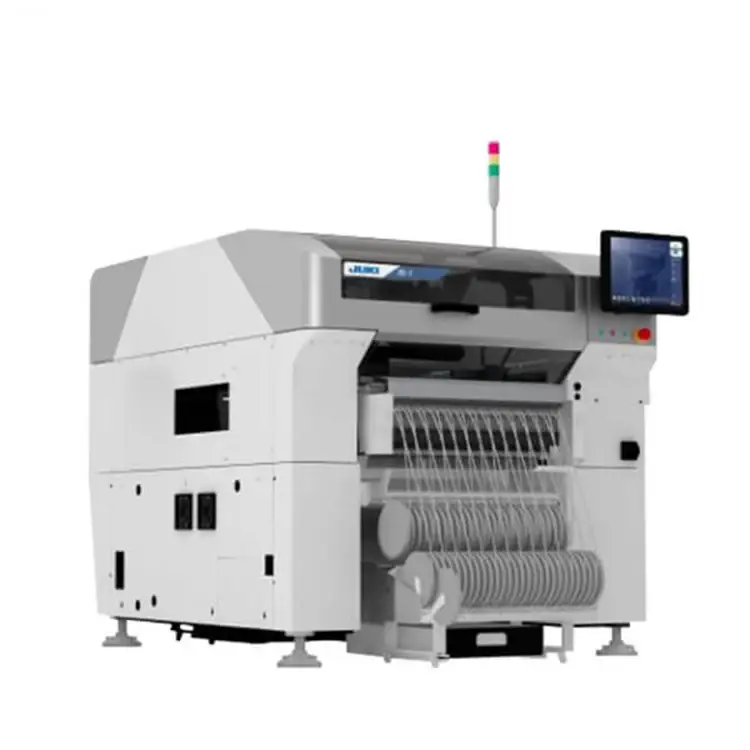

Product details of the auto pick and place machine
Product Overview
YFX Machine auto pick and place machine follows the normative production conditions. Its quality is highly valued in our factory. Shenzhen Yufuxin Technology Co., Ltd.'s customer service has high adaptability for different requirements.
Product Information
YFX's auto pick and place machine has the following advantages over other similar products.
|
Board Size |
50×50～510mm*¹ *²×450mm |
|
Component Height |
3mm |
|
Component size |
0201*³～5mm |
|
Placement Speed (optimum) |
100,000CPH |
|
Placement Accuracy |
±0.04mm (Cpk ≧1) |
|
Feeder Supply |
Up to 56 *⁴ |
|
Power Supply |
3Phase AC200V、220V～430V *⁵ |
|
Apparent Power |
2.1kVA |
|
Operating air Power |
0.5±0.05MPa |
|
Air consumption（standard) |
20L/min ANR (during normal operation) |
|
Machine Dimensions（W×D×H）*⁶ |
998mm×1,895mm×1,530mm |
|
Machine Weight |
1,810kg（with fixed bank）/ 1,760kg（with bank changing） |
|
*1 BOC, Bad Mark, and 2D barcode can be read only if board is from 50mm to 350mm *2 In long board mode (two boards can be produced simultaneously up to 420mm long ). *3 Please contact FLASON SMT for details *4 When use RF08AS Feeder *5 220V-430V requires a separate transformer. *6 Depth D does not include the monitor, and height H does not include the signal light when conveyor height is 900mm. |
|
|
Options |
|
|
Conveyor System |
Support Pin/Support plate |
|
Other |
Dedicated Nozzle / Spare Nozzle cartridge / Connecting Cable / Earth leakage circuit breaker / Work lighting |
|
Available Feeders |
Feeder bank exchange trolley / Electric tape feeder / Fixed（RF）bank / Feeder setup station tape splicing jig / Feeder adjustment jig / External power supply for the electric feeder banks |
|
Software |
|
|
JaNets* |
User definition/Facility definition / Component DB / Creating Production programs / Line optimization / Line monitoring / CAD conversion / Cluster optimization |
|
IFS-NX |
Prevents loading parts in the wrong location / Tracks remaining quantity of parts / External setup verification/Random Feeder setup |
|
Virus measurement software |
White list（Standard） |
