YFX Machine - Professional SMT machine manufacturer providing one-stop solution.
Smt Line Machine Electronic Component Assembly New Product 2020with Custom Services
Product details of the smt line machine
Product Specification
After-sales Service Provided: Video technical support, Online support
Local Service Location: Egypt, Italy
Showroom Location: Peru, Russia, Chile, Uzbekistan
Condition: New
Marketing Type: New Product 2020
Product Overview
The raw materials utilized in the YFX Machine smt line machine are acquired from specialized suppliers. smt line machine is more suitable for a variety of occasions. smt line machine can be applied to different industries, fields and scenarios. Following through on the promises applies to Shenzhen Yufuxin Technology Co., Ltd.'s every step of the customer-service process.
Product Introduction
YFX pays great attention to the details of smt line machine. The following will show you one by one.

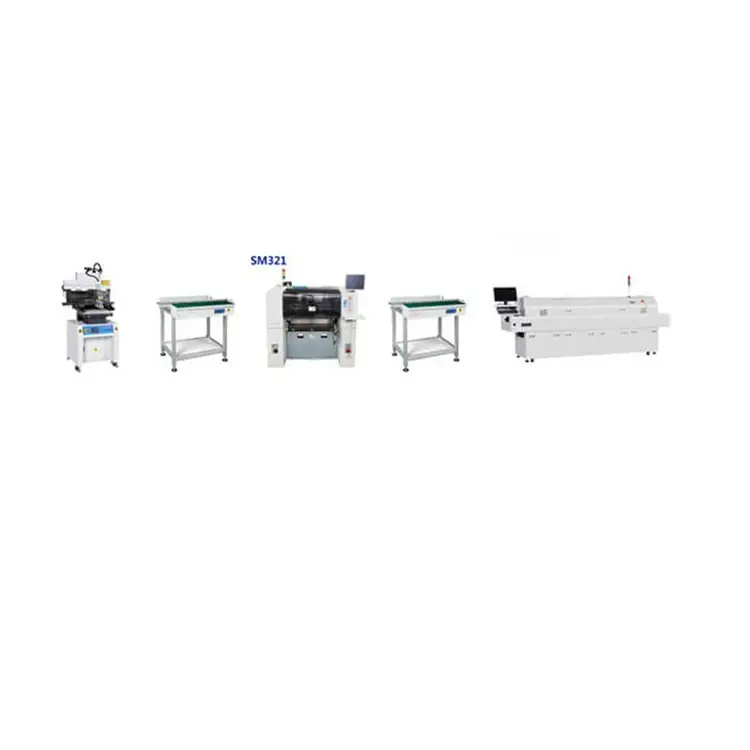

used-Samsung SMT Assembly line SM321
Samsung SMT Assembly line, Samsung SM321 speed is 21000CPH, Suitable for LED light, LED strip, Consumer products like mouse, Keyboard and other home electronic proudcts production. Whole production line cost around 20000USD, Suitable for start up SMT LED PCB assembly business. Contact us and we will offer you a suitable semi auto SMT assembly line solutions for start up SMT factory.
Specifications of each Machine:
1.Samsung SM321 Chip Mounter,As a ten years old pick and place machine, Samsung SM321 still working fine with good quality, very nice price and it is suitable for start up low cost SMT solutions..
Chip theoretical speed of 21,000CPH
Mounting range 0402mm Chip to 55mm
Placement accuracy plus or minus 0.03mm
PCB size 460 * 400 * 4.2 ~ 50 * 40 * 0.38
Equipment size L1,650 * D1,680 * H1,530
Power 4.7KVA
Equipment weight 1800kg
Maximum height H 15mm (fixed vision)
Narrow Pitch Mounting 0402 Chip: P 0.10mm
0603 Chip: P 0.15mm
The number of feeders Max.120EA
PCB size (mm)
(L * W * T) Standard 460 * 400 * 4.2 ~ 50 * 40 * 0.38 (weight 3kg)
Option 510 * 460 * 4.2
Special custom 610 * 510 * 4.2
Dimensions L1,650 * D1,680 * H1,530
Weight (KG) 1,800kg
Energy consumption 3phase
AC200 / 208/220/240/380/415
4.7kVA / (RMS 3kVA) 50 / 60Hz
Air consumption 5KG / cm2 260NI / min
2.8 zones Reflow oven,it's enough for LED production, if you need double side PCB production use a Chain conveyor is OK. and second hand price is quite good and it's suitable for start up low cost SMT solutions..
Company Advantages
Shenzhen Yufuxin Technology Co., Ltd. is a modern company specializing in the production and sale of Selective Soldering Machine,AOI Machine,Pick And Place Machine. YFX runs a comprehensive pre-sales and after-sales service system. We can effectively protect consumers' rights and interests and provide quality products and services. Do not hesitate to contact us if you are interested in ourSelective Soldering Machine,AOI Machine,Pick And Place Machine.
