Smt Mounter YFX Machine Brand Factory Direct Supply

Inquiry
Mounting speed
42,000CPH
Mounting accuracy
±35μm
Warranty of core components
1 Year
Video outgoing-inspection
Provided
Machinery Test Report
Provided

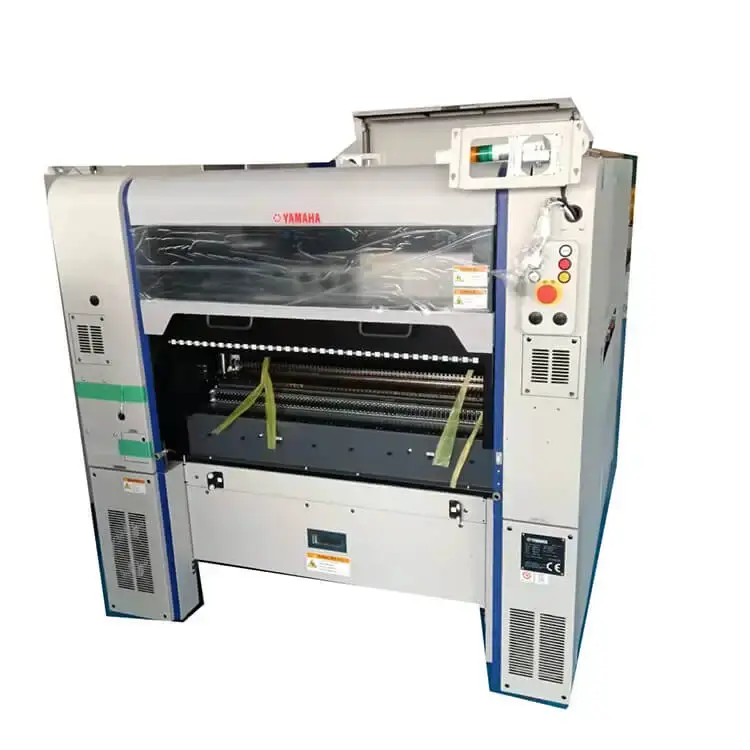

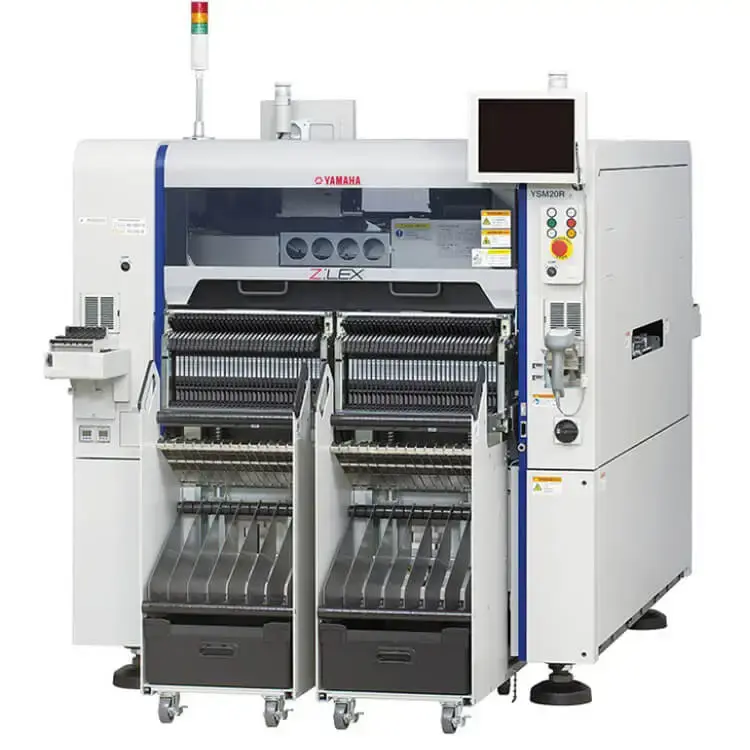

Yamaha YSM20R PCB chip mounter machine PCBA smt pick and place machine

YAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20RYAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20RYAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20R

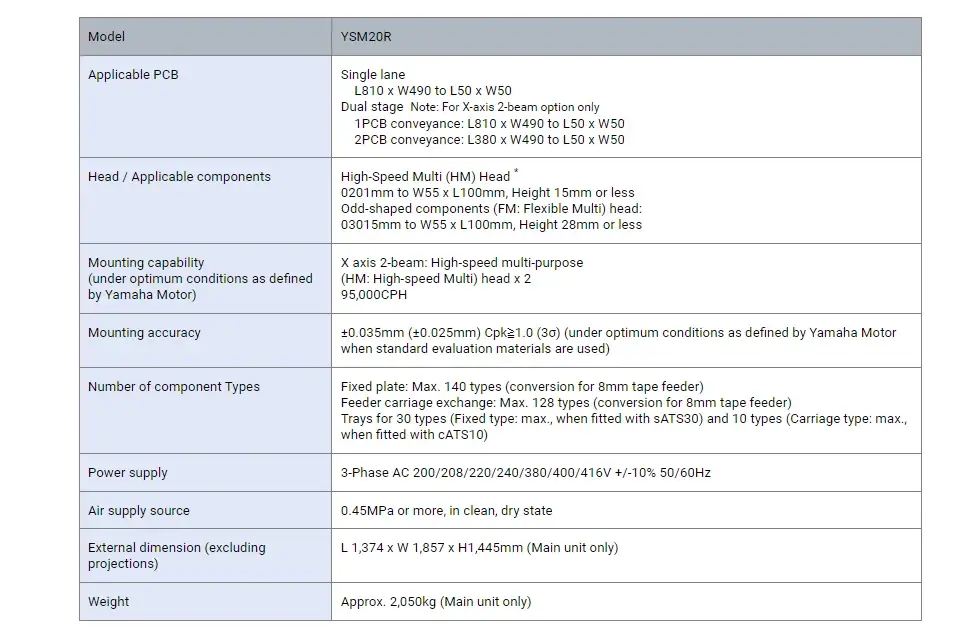

Product Description





Model
YSM20R


Applicable PCB
Single lane
L810 x W490 to L50 x W50
Dual stage Note: For X-axis 2-beam option only
1PCB conveyance: L810 x W490 to L50 x W50
2PCB conveyance: L380 x W490 to L50 x W50


Head / Applicable components
High-Speed Multi (HM) Head *
0201mm to W55 x L100mm, Height 15mm or less
Odd-shaped components (FM: Flexible Multi) head:
03015mm to W55 x L100mm, Height 28mm or less
Mounting capability
(under optimum conditions as defined by Yamaha Motor)
X axis 2-beam: High-speed multi-purpose
(HM: High-speed Multi) head x 2
95,000CPH

Mounting accuracy
±0.035mm (±0.025mm) Cpk more than 1.0 (3σ) (under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)


Number of component Types
Fixed plate: Max. 140 types (conversion for 8mm tape feeder)
Feeder carriage exchange: Max. 128 types (conversion for 8mm tape feeder)
Trays for 30 types (Fixed type: max., when fitted with sATS30) and 10 types (Carriage type: max., when fitted with cATS10)
Power supply
3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz
Air supply source
0.45MPa or more, in clean, dry state
External dimension (excluding projections)
L 1,374 x W 1,857 x H1,445mm (Main unit only)
Weight
pprox. 2,050kg (Main unit only)
Packaging & Shipping

 YAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20R

FAQ

 YAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20RYAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20R





More line

YAMAHA YSM20R Pick and and Place,PCBA Surface Mounter SMT Pick and Place Machine YAMAHA YSM20R






Company Advantages

· The production of YFX Machine smt mounter highly adopts international production technology.

· It is made through a process that involves rigorous quality testing.

· YFX Machine actively aims to perfect industrial chain to lead smt mounter development.


Company Features

· Shenzhen Yufuxin Technology Co., Ltd. takes a leading position in China's smt mounter production field.

· We are backed by a professional management team. Each of them brings experience and perspective to our business and promotes the smooth progress of production based on their day-to-day expertise.

· In the future, we will not only focus on our interests but also cultivate human values for the benefit of all living things in our circle. Inquire now!


Application of the Product

The smt mounter produced by YFX has a wide range of applications.

Guided by the actual needs of customers, YFX provides comprehensive, perfect and quality solutions based on the benefit of customers.

Contact us
we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
