Smt Printer Machine New YFX Machine
Product details of the smt printer machine
Product Specification
Machinery Test Report: Provided
Type: SMT Machine Parts
Condition: New
Weight: 1400KG
Applicable components: 0402~5050
Product Overview
YFX Machine smt printer machine is available in various innovative and functional designs. The product is totally inspected by our QC team with their dedication to high quality. These features make it have the industrial value of popularization and application.
Product Description
YFX will show you the specific details of products below.

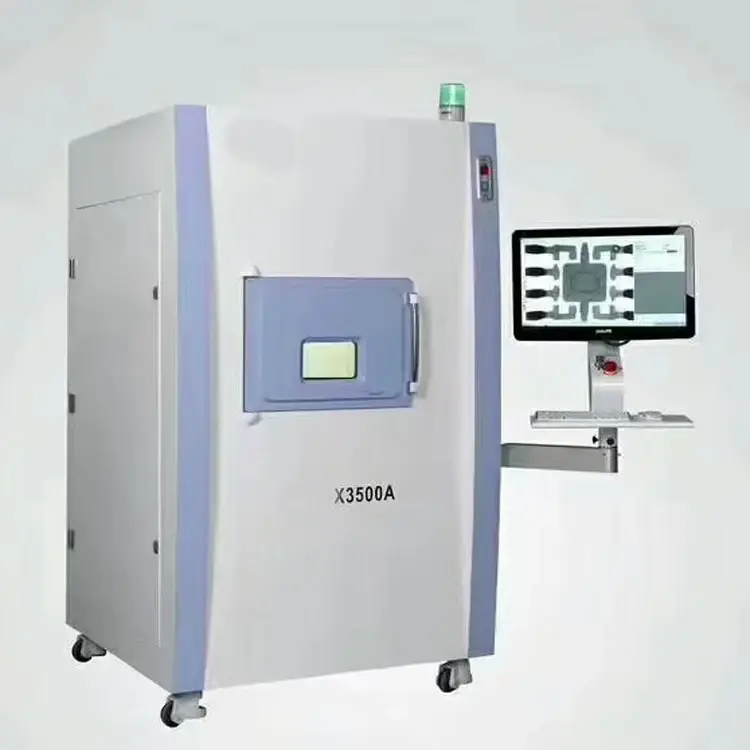

Industrial SMT automatic x-ray machine for pcb inspection with low price
Applications:
1. Semiconductor: Inner structure of IC, FC, CSP package inspection
2. Aluminum casting relates to cars, bubble &fissure of rubber and resin products inspection
3. Short & open circuit in BGA package, bubble area in BGA inspection and auto-judgment
4. Aerospace and military, aerofoil, bullet etc.
5. Troche in medicine, FRP in chemical products, resin, ceramics.
6. Lithium battery, electronic components (capacitor, resistor, diode & audion, led etc.) inspection
Features:
1. Imported Micro X-Ray tube with original packaging(100/130Kv closed tube), highly-sensitive image intensifier, 1.3 million pixels industrial
digital CCD camera, able to detect item <5μm,display clear image.
2. Adjustable high power geometric & system magnification, easy to find out tiny defect with high detecting speed.
3. System navigation chart, navigating rapidly and positioning accurately.
4. Observe object at ±70°, detecting from particular angle, easy to detecting inner structure
5.Five axis moving coordinately, with function of CNC auto-detects in quantity, suitable for detecting in large quantity with high accuracy.
6. 23" digital image-special LCD monitor, displaying large and high definition image.
7. Multi-function software system, free maintenance and update for life.
8. Complete seal lead cabinet, comply with the provisions of the international and domestic X-ray safety standards.
Specification:
|
model |
3500A (X-ray 100KV) |
|
Display |
22" LCD monitor |
|
Image area |
600*415 mm |
|
Image Resolution |
110 LP/CM |
|
CCD Pixel |
1.3 million |
|
Camera Spec |
Image Intensifier+Digital CCD 25 frames/m |
|
Magnification |
120(Geometric )/1200(System) |
|
X-ray Output Voltage |
90 ~ 130 KV |
|
Field of view |
0 ~ 70℃ tilt, 360℃ rotate |
|
Focal Spot |
5 um |
|
X-Ray Tube Type |
Closed tube |
|
Power Supply |
Single phase AC 110~230V/50~60HZ |
|
Weight |
1100KG |
|
Testable Weight |
sample <5 |
|
Work Table |
X / Y / Z / Q Axis |
|
Manual Operation |
by keyboard/mouse/navigation positioning |
|
CPU |
Intel Pentium |
|
Memory |
2GB |
|
Computer System |
Win7 |
|
Input |
Keyboard |
|
Report Output |
Manual/auto save tested doc |
|
video Function |
Standard |
|
Dimension |
1160*1090*1857 mm |
|
Navigation |
Automatic scanning navigation |
|
3D View |
Imitation |
|
Void, BGA, Distance Inspection |
Auto-inspect function settable |
|
BGA Auto Inspection |
set the counting of BGA inspection,measurement and bubble |
|
Inspection Area |
X / Y plane direction |
|
Special Isolation |
Non |
|
Temperature Humidity |
0-40℃ 0-90% |
|
Suspended matter |
non-conductivity dust |
