Smt Printer Machine Supplier Electronic Component Assembly YFX Machine 78
Product details of the smt printer machine
Product Specification
Item: Place Machine PNP Machine
Placement Speed: 78,000CPH
Core Components: PLC
Marketing Type: New Product 2020
Spindles: 10 Spindles *2 Gantry
Product Overview
There are higher requirements in terms of materials used for smt printer machine. Every detail of the product has been carefully inspected by profession QC staff. YFX's smt printer machine can be applied to different fields and scenes, which enables us to meet different requirements. Shenzhen Yufuxin Technology Co., Ltd.'s products’ quality and market coverage is in front of other companies in domestic market.
Product Information
Compared with other products in the same industry, YFX's smt printer machine has the following characteristics.

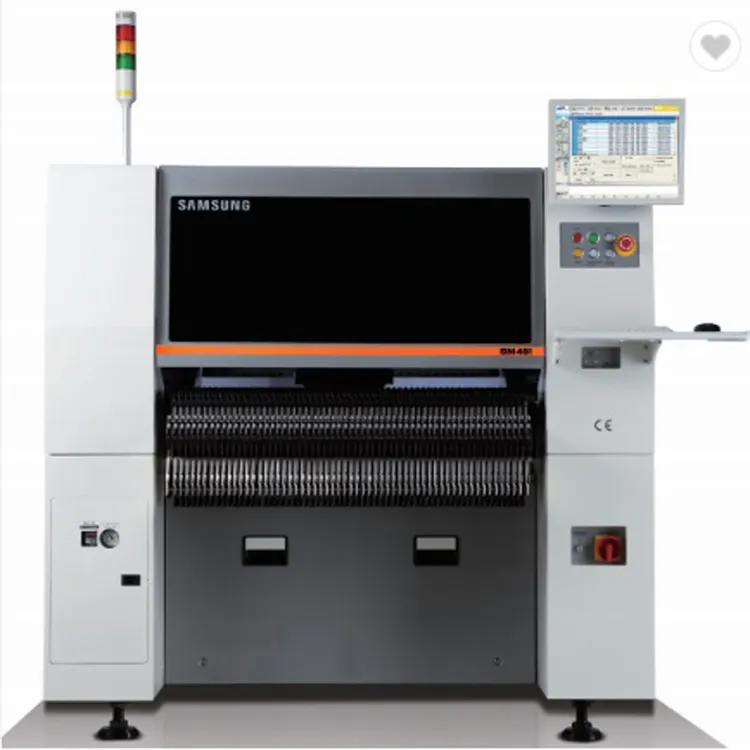

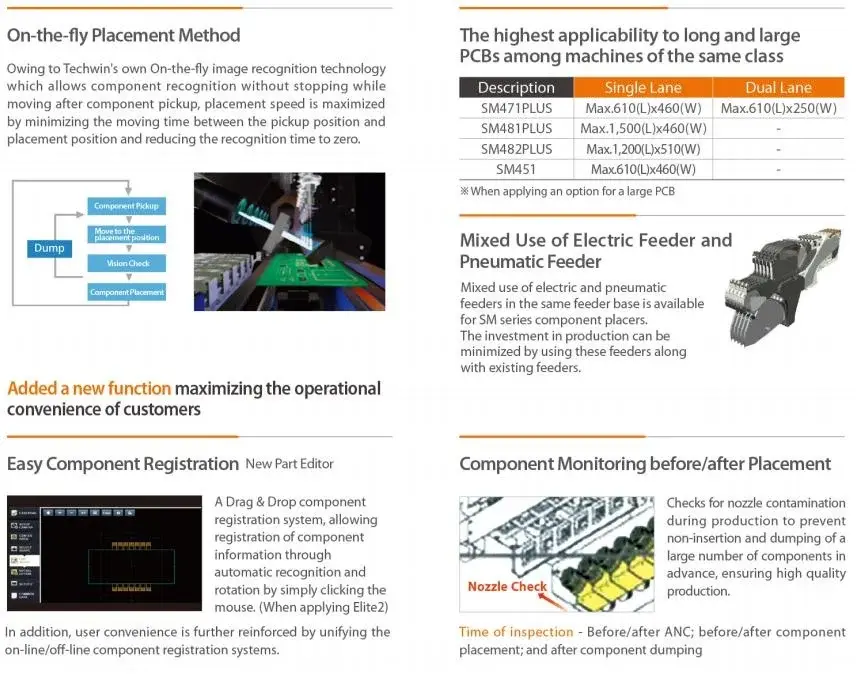

SAMSUNG/ Hanwha SM471 Plus Fast Pick and Place Machine
Specification of Hanwha Chip Shooter
| Model | SM481 | SM481 plus |
| speed | 43,000 CPH (best) | 40,000 CPH (optimum) |
| component size | 0402(01005 inch) ~ 16mm IC | 0402(01005 inch) ~ 16mm IC |
| mounting accurancy | ±80μm@μ+3σ | Chip: ±40μm@μ+3σ QFP:±30μm@μ+3σ |
| PCB size | MIN:50(L)x40(W) MAX:460(L)x400(W) 510(L)x460(W)(option) 610(L)x510(W)(option) 740(L)x460(W)(option) |
min:50(L)x40(W) max:460(L)x400(W) 510(L)x460(W)(option) 610(L)x510(W)(option) max:1500(L)x460(W)(option) |

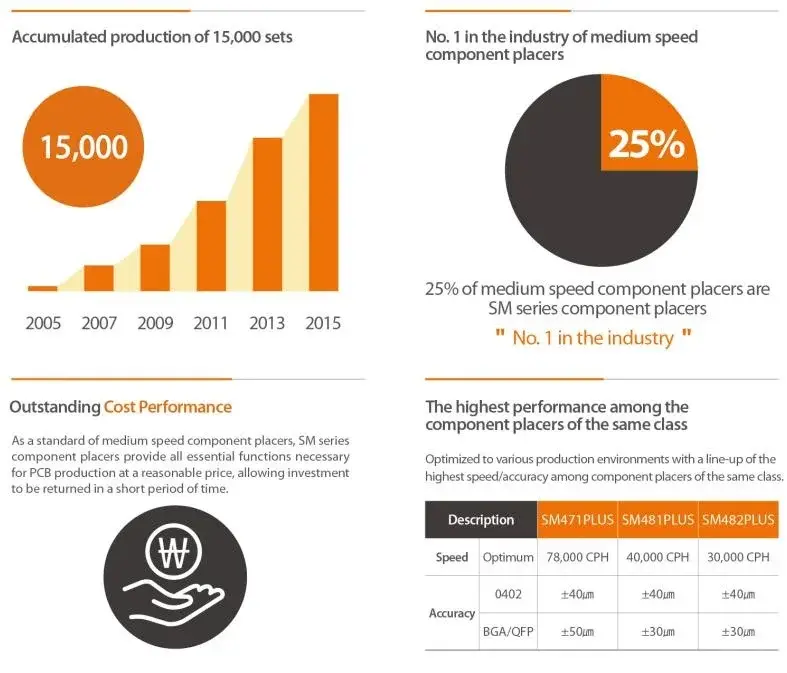

| vision system | HD flying camera | Flying camera + fixed camera(Optional) |
| mounting head | 10 spindles x 1cantilevers | 10 spindles x 1 cantilever |
| component thickness | 10mm(option 15mm) | 10mm(option 15mm) |
| PCB thickness | 0.38~4.2mm | 0.38~4.2mm |
| feeders | 120ea/112ea | 120ea/112ea |
| voltage | AC 200/208/220/240/380/415V(50/60Hz,3Phase) | AC 200/208/220/240/380/415V(50/60Hz,3Phase) |
| power | Max 4.7KVA | Max 3.5KVA |
| air pressure | 0.5~0.7MPa(5~7kgf/cm2) 160NL/min,50NL/min(Vacuum pump) | 0.5~0.7MPa(5~7kgf/cm2) 160NL/min,50NL/min(Vacuum pump) |
| vision system | 1,650mm(L) x 1,680mm(D) x 1,530mm(H) | 1,650mm(L) x 1,680mm(D) x 1,530mm(H) |
| machine weight | 1655kg | 1655kg |
| work environment | 5~25 degree | 5~25 degree |
| work noise | 35-65 decibel | 35-65 decibel |
| correction model | Machine vision system, multi-point mark vision correction. | Machine vision system, multi-point mark vision correction. |
| driver system | AC servo, AC motor | AC servo, AC motor |
| data transmit | USB interface input (EXCEL document format), | USB interface input (EXCEL document format), |
| operation system | Chinese, English, Korean operation interface (WINDOWS system control platform) | Chinese, English, Korean operation interface (WINDOWS system control platform) |
| operation system | automatic | automatic |
| Model | SM471PLUS | SM481PLUS | SM482PLUS |
| Numbers of Spindles | 10 Spindles × 2 Gantry | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78000CPH(Optimum) | 40000CPH(Optimum) | 30000CPH(Optimum) |
| Placement Accuracy | ±50μm@μ±3σ | ±30μm@μ±3σ | ±30μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB | Max. 510(L) x 460(W)(Standard) | Max. 460(L) x400(W)(Standard) | Max. 460(L) x400(W)(Standard) |
| Max. 610(L) x 460(W)(Option) | Max. 1500(L) x 460(W)(Option) | Max. 1200(L) x 510(W)(Option) | |
| Dimension(mm) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
