YFX Machine Brand Mounter Machine in Smt Supplier
Product details of the mounter machine in smt
Product Specification
Machinery Test Report: Provided
Applicable Parts: 0402 ~ 14mm
Spindles: 10 Spindles *2 Gantry
Warranty of core components: 1 Year
Video outgoing-inspection: Provided
Product Description
In the production of YFX Machine mounter machine in smt, the latest machining techniques is used. Skillful employees and a range of equipment guarantee the product quality. The spreading popularity of mounter machine in smt profits by the complete sales network.

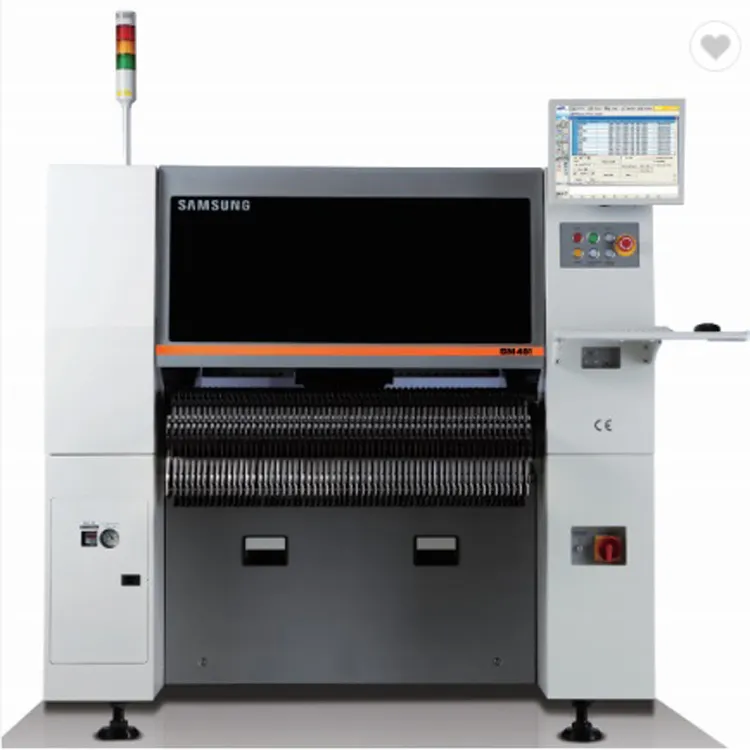

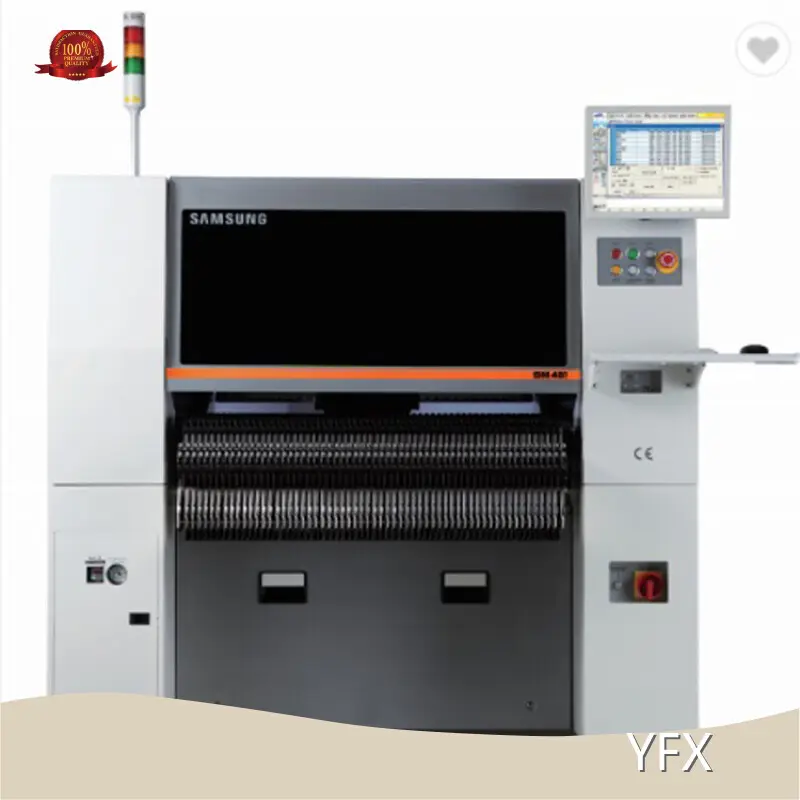

SAMSUNG/ Hanwha SM471 Plus Fast Pick and Place Machine
Specification of Hanwha Chip Shooter
The Samsung SM471 is a high-speed chip mounter equipped with 10 axes for each mount head and dual-boom.
high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .
0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.
High-precision electric feeder, improve the actual productivity and placement quality.
|
Specifications |
SAMSUNG SMT Pick and Place Machine SM471 Plus |
|
Alignment |
Flying Vision |
|
Number of Spindles |
10 Spindles x 2 Gantry |
|
Placement Speed |
75,000 CPH(Optimum) |
|
Placement Accuracy |
±50μm@μ+3σ (Based on the Standard Chips) |
|
Component Range |
Chip 0402 ~ 14mm(H 12mm) IC, Connector(Lead Pitch 0.4mm) BGA, CSP(Ball Pitch 0.4mm) |
|
Board Dimension(mm) |
50(L) x 40(W)~510(L) x 460(W)610(L) x 460(W)(Option) |
|
Feeder Capacity |
120ea / 112ea(Docking Cart) (Based on 8mm) |
|
Power |
AC200 / 208 / 220 / 240 / 380 / 415V (50/60Hz, 3Phase)Max. 5.0kVA |
|
Air Consumption |
0.5 ~ 0.7MPa(5 ~ 7kgf/cm2) |
|
Mass |
Approx. 1,820kg |
|
External Dimension(mm) |
1,650(L) x 1,690(D) x 1,485(H) |
