YFX Machine - Professional SMT machine manufacturer providing one-stop solution.
YFX Machine Smt Placement Equipment Factory Direct Supply PCA Production
Product details of the smt placement equipment
Product Specification
Machinery Test Report: Provided
Max z moving range: 16mm
Core Components: PLC, Motor, Pump
Applicable Industries: Other
After-sales Service Provided: Free spare parts
Product Introduction
Shenzhen Yufuxin Technology Co., Ltd. put lots of time and energy even on outline of smt placement equipment. The product produced under the circumstances we set meets the strictest quality criteria. Shenzhen Yufuxin Technology Co., Ltd. has always been adhering to the one-stop service with pragmatic and mutually beneficial.

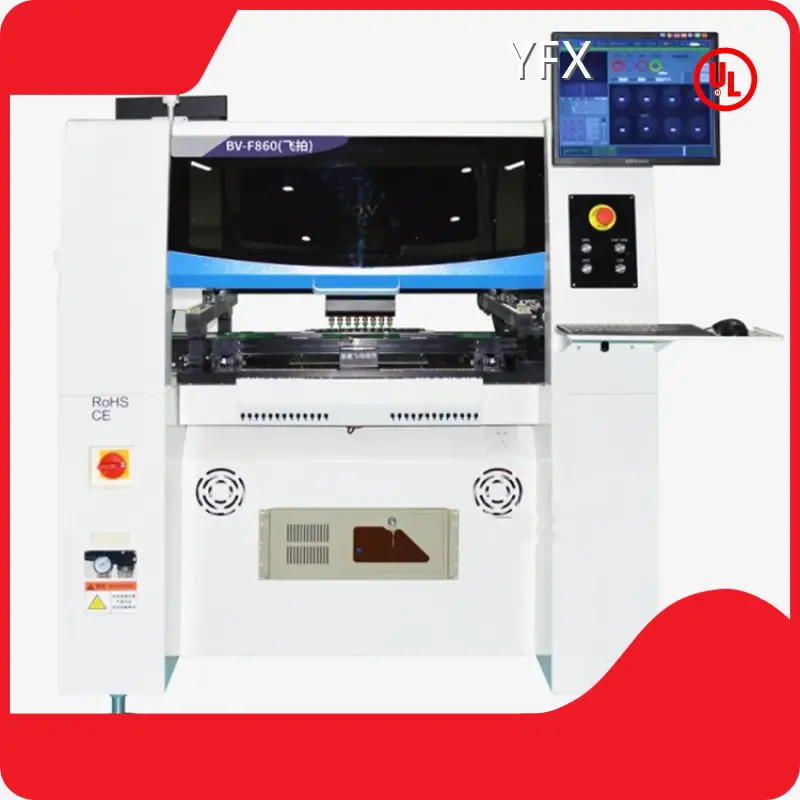

Manufacturer Electronic 8 Heads SMT Pick and Place Machine LED PCB Making Machine
|
Item |
model |
BV-F860 high speed |
|
1 |
operating system |
Support Windows XP, Win7 operating system |
|
2 |
software |
independent research and development |
|
3 |
Feeder No. |
52 |
|
4 |
Number of pallets |
10 Species |
|
5 |
Feeder No. |
8 |
|
6 |
Average Power |
650W |
|
7 |
Positioning |
0.01mm |
|
8 |
Driving Motor |
8 Independent closed loop (no step) |
|
9 |
Power Supply |
220V, 50Hz |
|
10 |
Anti-collision function of feed feeder |
support |
|
11 |
Drive motor |
Panasonic servo motor |
|
12 |
mount height |
support 0-10MM |
|
13 |
air compression |
0.5-0.6MPA |
|
14 |
Max. Circuit Board Area |
580*380M |
|
15 |
XY Max. Movement Range |
700*619mm |
|
16 |
Z Axis Max. Movement Range |
38mm |
|
17 |
Guide track adjustment mode |
Manual + automatic |
|
18 |
XYZ drive guide rail |
Imported WON high-precision ball screw rod + imported TBI heavy-duty linear guide |
|
19 |
Programming method |
Point-to-point programming, visual programming, PCB file coordinates inputting, etc. |
|
20 |
Dimensions |
1395*1180*1376M |
|
21 |
Open the cover alarm |
Speed reduction or shutdown |
|
22 |
Max. Mounting Speed |
30000 Pcs/h (No vision) |
|
23 |
Average Mounting Speed |
14000-20000 Pcs/hour(Open vision) |
|
24 |
Typical speed |
15000 Pcs/h(Open vision) |
|
25 |
Motion drive system |
Import of Japan high-speed DSP drive |
|
26 |
Product Weight |
1100KG |
|
27 |
Belt Type Feeder |
8,12,16,24 32 56mm 8/12/16/24mm feeders, stick feeder, tube chip |
|
28 |
MES abutment |
support |
|
29 |
Top plate function |
support |
