Selective welding

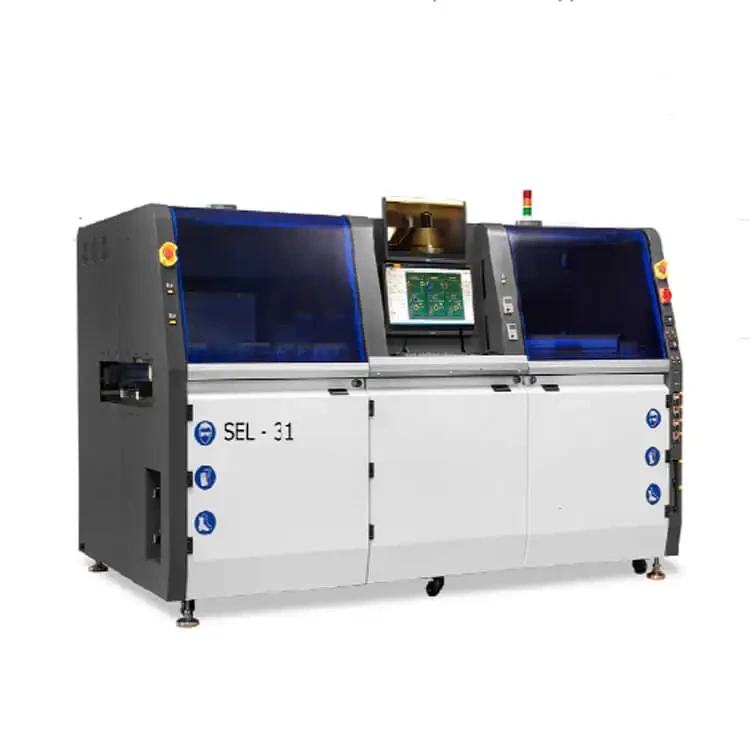

selective soldering machine450 for dip production

Features:

1. Equip with spraying, preheating and welding units which can complete the whole welding process in a small machine.

2. Small size, small footprint, length:1435mm.

3. Standard electromagnetic pump solder tank, no wear parts, easy maintenance.

4. Rotary track design which allows loading and unloading PCB on the same side of the machine.

5. Standard equipped with teaching camera, spray cleaning function.

6. Realtime monitoring and recording of welding process.

7. Transmission system adoption a roller conveyor,increase welding space,better close to the edge components of welding.

8. Adopts precise nozzle with 130um diameter which is imported from Germany and can uniformly spray flux in the required welding

area.The minimum injection area is3mm which saves atleast 90%flux compared with the traditional spraying.

9. All the movements are drived by servo motor.The movements are stable and smooth.The precision accuracy is around 0.05mm.

10. The soldering module has high precision axis system to ensure the accurate soldering path and with particular process,the

system will eliminate the chance of bridging.

11. Process monitor screen and automatic soldering wave height detecting are very friendly for users.

Specification
