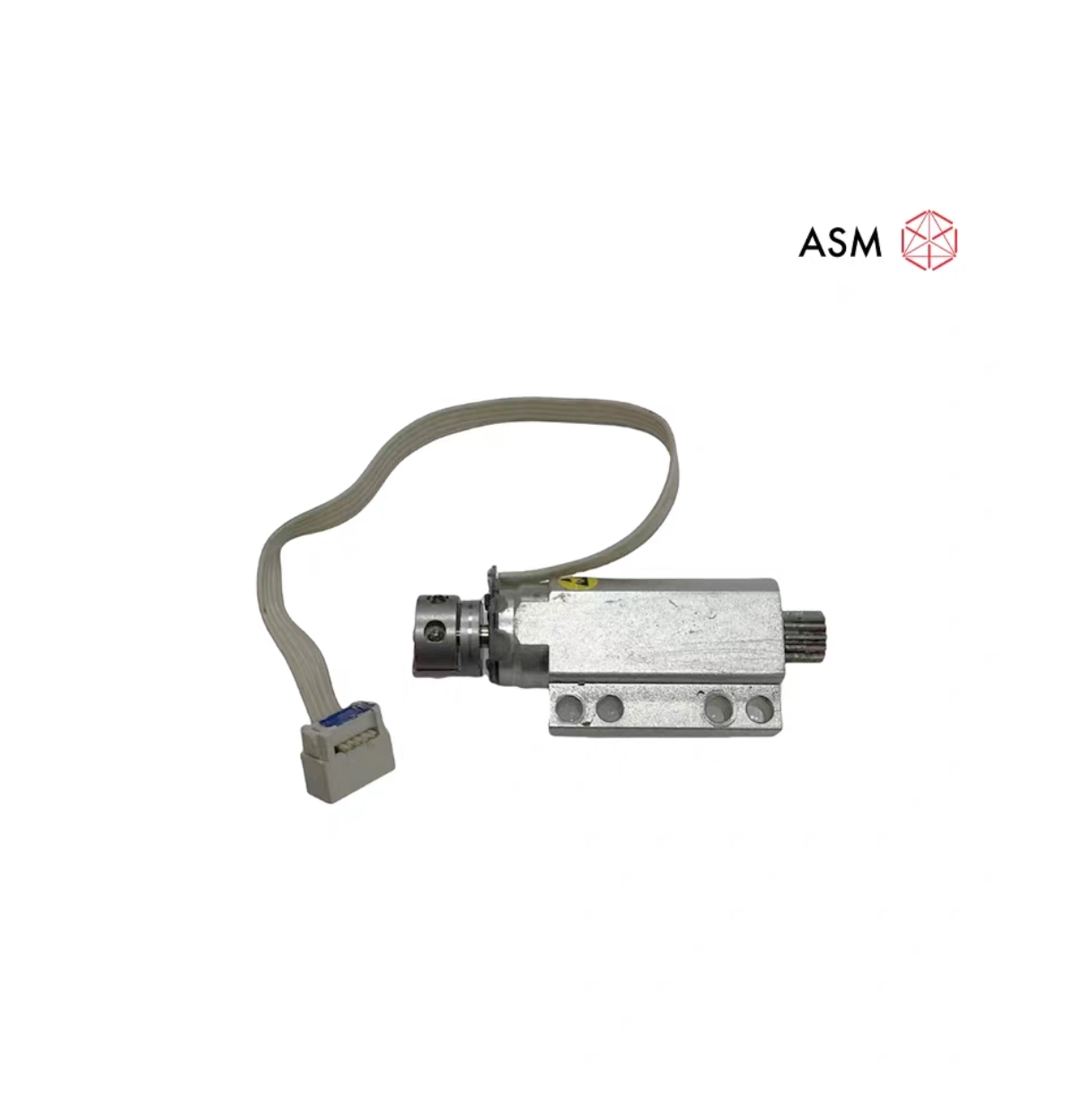

ASM Siemens Chip Mounter Motor 3x8 Feed/Roll Material Accessory 1 Year Warranty
ASM Siemens Chip Mounter Machine Accessories - DP Motor number 03102532S06 03153682 Original New
ASM Siemens chip mounter machine motor
ASM electronics production machinery
X Series DP Motor : 03102532S06 03050314//03102532 //03058627-04/03153682
Electronics production machinery motor
Philippines showroom motor
Philippines showroom motor
Siemens SMT Machine TX1
Soldering speed
IPC speed: 32,500 cph
Theoretical speed: 50,200 cph
Soldering accuracy: ±30 µm / 3σ, ±25 µm / 3σ with HPF**
Component range: 0201 (metric, i.e. 0.6mm × 0.3mm) - 6x6mm
Component height: 4mm
PCB size: 45mm x 45mm - 375mm x 260mm (standard)
Optional: 45mm x 45mm - 375mm x 460mm (Single Rail Mode)
Feeder capacity: 80 pieces of 8mm x feeder position
Machine dimensions: 1.0m x 2.3m x 1.45m (length x width x height)
Number of suspensions: 1
Siemens SMT Machine TX2
Soldering speed
IPC speed: 65,000 cph (Note: This figure differs from the provided information, but based on common specifications, this value is more reasonable)
Theoretical speed: Usually higher than the IPC speed. The specific value may vary depending on the model configuration, but generally does not exceed 100,500 cph (this is an estimated value, and the actual figure may differ).
Soldering accuracy: ±40 µm / 3σ (C&P), ±34 µm / 3σ (P&P)
Component range: 01005 (metric, i.e. 0.4mm × 0.2mm) - 50x40mm
Component height: 11.5mm (or may vary depending on specific configuration)
PCB size: 45mm x 45mm - 375mm x 260mm (standard)
Optional: 45mm x 45mm - 375mm x 460mm (Single Rail Mode)
Feeder capacity: 80 pieces of 8mm x feeder position
Machine dimensions: 1.0m x 2.3m x 1.45m (length x width x height)
Number of suspensions: 2
Siemens SMT Machine TX2i
Soldering speed
IPC speed: 67,000 cph
Theoretical speed: 103,800 cph
Soldering accuracy: ±22 µm / 3σ
Component range: 0201 - 55x45mm (Note: The component range here may be related to specific configurations, and 55x45mm may not be the exact maximum value)
Component height: 25mm
PCB size: 45mm x 45mm - 375mm x 260mm (standard)
Optional: 45mm x 45mm - 375mm x 460mm (Single Rail Mode)
Feeder capacity: 80 units, each 8mm in size, feeder position
Machine dimensions: 1.0m x 2.3m x 1.45m (length x width x height)
Number of suspensions: 2
