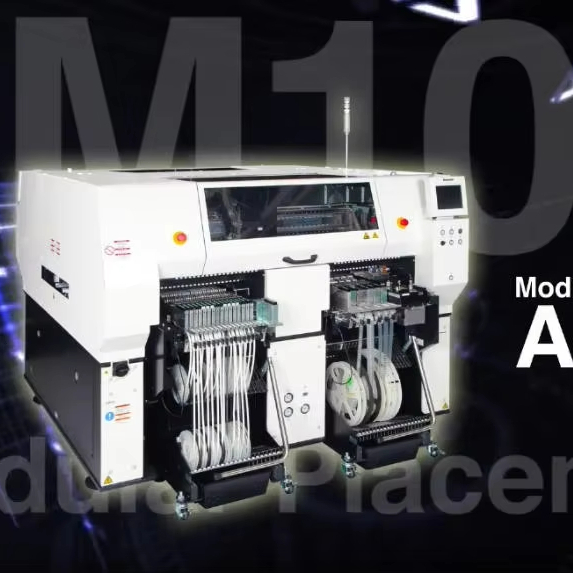

Japan PANASONIC Am-100 Pick And Place Machine Original New

Technical parameters of 100-paste machine:
Soldering machine model: Panasonic AM100 Soldering Machine
Model: NM-EJM4D
Board size: L50mm×W50mm to L510mm×W460mm
Soldering speed: 35,800 cph (0.1006s/chip), 12,200 cph (0.295s/QFP with pin size below 12mm)
Soldering accuracy (Cpk≥1): ±40μm/chip
±50μm/QFP with pin size below 12mm
±30μm/QFP with pin size from 12mm to 32mm
Component supply: Tape
Tape width: 4 - 56/72/88/104mm
Tape feeder specification: Max. 160 varieties
Tray feeder specification: Max. 120 varieties 1 (When using tape width of 4/8mm tape (small reel), 1)
Rod-like: Tape feeder specification: Max. 40 varieties
Tray feeder specification: Max. 30 varieties 1 (When using single rod-like feeder)
Tray: Tray feeder specification: Max. 20 varieties

Electronics Assembly System Quality improvement APC system Feedforward to placement heads Feed forward the offset values calculated from solder position Chip components(0402C/R ∼) Package component (QFP, BGA, CSP) Post-printing inspection Standard solder placement Automatic support pin replacement Placement height control Improves mounting quality by controlling the mounting height based on PCB warpage data and individual part thickness. Support pins are replaced automatically to reduce labor and operator errors during changeover. Standard placement inspection After reflow Without PCB warpage measurement With PCB warpage measurement Component Verification option Prevents setup errors during changeover Provides an increase  Component setup error prevention of production efficiency through easy operation  Prevents setup errors through verifying the AM100 downloaded For Wireless scanner (PDA)  production data and component barcode data Wireless scanner *1 Array data activesync function  There's no need to select array data; data is verified with the AM100 *1 Access point Interlock function  Equipment stops when it has an incorrect and/or incomplete verification  Navigation function  Clearly provide a verification task with data display and Intelligent  feeder performance in sync FA PC AM100 Line (LNB)  Scanner selection Wireless scanner *1  Users can choose either a wired or wireless scanner (PDA) *1:Please prepare a wireless scanner and related accessories by yourself LCM factory management system (PanaCIM) Helps improve the entire factory’productivity and quality by supporting/directing s operators and contributing to better management of the factory. Modular Placement Machine Mixing a wide variety of machine layouts and a wide range of options to offer you an optimum line suitable for all types of production Operation monitor Feeder maintenance unit Automatic tape splicing unit Safety Cautions  Please read the User's Manual carefully to  familiarize yourself with safe and effective  usage procedures.  To ensure safety when using this equipment all work should be  performed according to that as stated in the supplied Operating  Instructions. Read your operating instruction manual thoroughly. Panasonic Group products are built with the environment in mind.  Panasonic Group builds Environmental Management System in the factories of the world and acquires the International Environmental Standard ISO 14001. Panasonic Corporation Process Automation Business Division 3-1-1 Inazu-cho, Toyonaka City, Osaka 561- 0854, Japan TEL +81-6-6866-8675 FAX +81-6-6862-0422 All data as of January 1, 2018 Ver.January 1, 2018 © Panasonic Corporation 2018 Changes in specifications and appearance may be made without notice for product improvement. Homepage * It may not conform to Machinery Directive and EMC Directive in case of optional configuration and custom-made specification. Material management Operation analysis Automation reduces labor and helps improve quality Material verification Automation reduces labor and helps improve quality Placement speed Placement accuracy(Cpk1) ±40 µm/chip ±50 µm/QFP ±30 µm/QFP Component supply Taping Stick Tray 12 mm or less 12 mm over to 32 mm or less Tape:4∼ 56 / 72 / 88 / 104 mm Tape feeder specification: Max. 160 (Tape : 4 / 8 mm tape (small reel) ) Tray feeder specification: Max. 120 *1 Tape feeder specification: Max. 40 (Single stick feeder) Tray feeder specification: Max. 30 *1 Tray feeder specification: Max. 20 *1 Manually setting tray specification: Max. 2 0 *2 (Option for the fixed feeder base) Component dimensions 0402 chip *3 to L 120 mm × W 90 or L 150 mm × W 25 mm T=28 *4) ( PCB exchange time 4.0 s where there is no placement component on the rear side) ( Electric source Pneumatic source Dimensions Mass *Values such as maximum speed and placement accuracy may vary depending on operating conditions.  *Please refer to the ‘ Specification’booklet for details. *1:in case of Single tray  *2:When installed on both sides of the rear fixed feeder base.  *3:The 0402 chip requires a specific nozzle/feeder. 0402 mounting compatibility is optional. *4:For components with a height of 25 mm or more, a dedicated nozzle is required. *5:The D measurement indicates the size of the machine with the fixed feeder bases in the front and rear. For front and rear feeder cart specifications,D measures 2282 mm and, with the tray feeder connected (front side: fixed feeder base), 2105 mm. *6:The
