Factory Price Auto Pick and Place Machine YFX Machine Company
Company Advantages
· The raw materials of YFX Machine auto pick and place machine are of high quality. It is sourced from top grade suppliers whose materials are in line with the quality standards.
· This product has the advantages of long service life and stable performance.
· Shenzhen Yufuxin Technology Co., Ltd. has renewed their ideas for auto pick and place machine and promoted independence research ability over the years.
product description
Speed : 30,000CPH (Optimum)
PCB : Max. 460(L) x400(W)
Structure : 1 Gantry x 6 Spindles/Head
Component range: 0402 ~ 55mm(H 15mm)

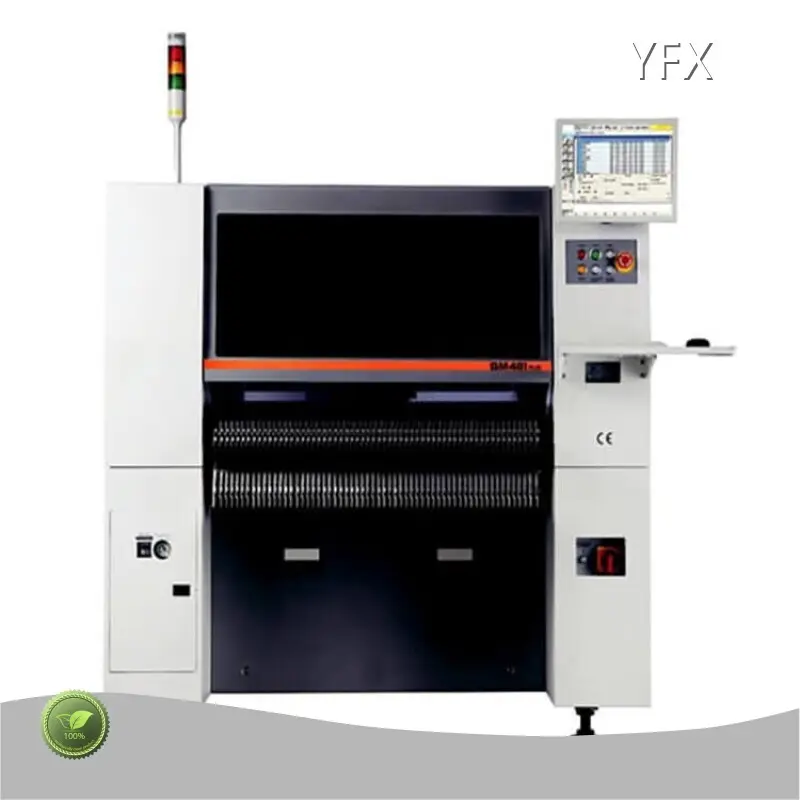

Product description: Hanwha SM482 Plus Pick and Place Machine, Speed : 30,000CPH (Optimum), PCB : Max. 460(L) x400(W), Structure : 1 Gantry x 6 Spindles/Head, Component range: 0402 ~ 55mm(H 15mm), weight:1600KG.
1. Applicability to odd-shaped parts is reinforced.
2. Equipped with a head with one gantry and six spindles
3. Placement accuracy correction system(head offset,C/V offset etc.)
4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."
5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."
6. Placement Rate:30,000CPH(Optimum)
7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)
8. Option: 50(L)*40(W)~760(L)*460(W)
9. PCB Thickness:0.38mm~4.2mm
10. External Dimension(mm): 1650(L)*1680(D)*1530(H)
11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)
Top Advantage:1. Advanced High Speed Flexible Mounter.2. High Speed, High Precision and Electrically Driven Feeder.
product information
| Specifications | Hanwha SMT pick and place machine | ||
| Model Name | SM471plus | SM481plus | SM482plus |
| Alignment | Flying Vision | Flying Vision+stage vision | Flying Vision+stage vision |
| Spindles | 10 Spindles × 2 Gantries | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H 15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB(L × W) | Max. 510 × 460(Standard) | Max. 460 × 400(Standard) | Max. 460 × 400(Standard) |
| Max. 610 × 460(Option) | Max. 1500 × 460(Option) | Max. 1200 × 510(Option) | |
| Dimension(L.D.H) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
| Mass(Kg) | Approx. 1820 | Approx. 1655 | Approx. 1600 |
Company Features
· Shenzhen Yufuxin Technology Co., Ltd. is a well-established company that manufactures auto pick and place machine. We are known in the industry for exclusive products and services.
· Our company has a team of experts. They have the expertise to regularly make the right decisions, retain control, manage risk, and guarantee customers consistently high-quality products. Our company has internal production units. They are equipped with all the latest equipment and machinery to keep quick twists. Our company has a team of experts. They have expertise in their area of expertise and assist the company in the production of products in accordance with customer instructions.
· We follow green practices. Throughout the business, we operate a strict policy to ensure that all of our processes, from manufacture to transportation, reduce the carbon footprint.
Application of the Product
The auto pick and place machine produced by YFX is widely used in industry.
YFX has an excellent team consisting of R&D, production, operation and management. According to actual needs of different customers, we could provide customers with practical solutions.
