High Quality Desktop Pick and Place Machine PCA Production

Product details of the desktop pick and place machine

Product Specification

Video outgoing-inspection: Provided

Power supply: AC220V 50Hz / AC110V 60Hz

Applicable components: 0402~5050

Weight (KG): 2200

Showroom Location: Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan, Japan, Malaysia, Australia, Morocco

Product Introduction

YFX Machine desktop pick and place machine is manufactured using high quality of raw materials that are procured from trusted vendors. desktop pick and place machine firstly take satisfying consumers' demand as aim. Taking desktop pick and place machine as our priority is a very important part for our growth.

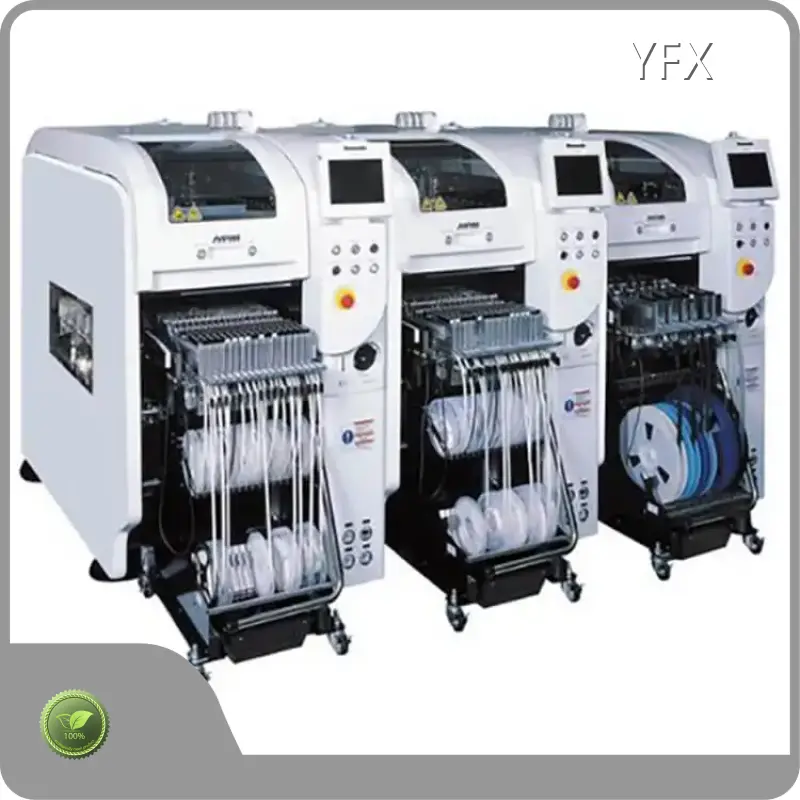

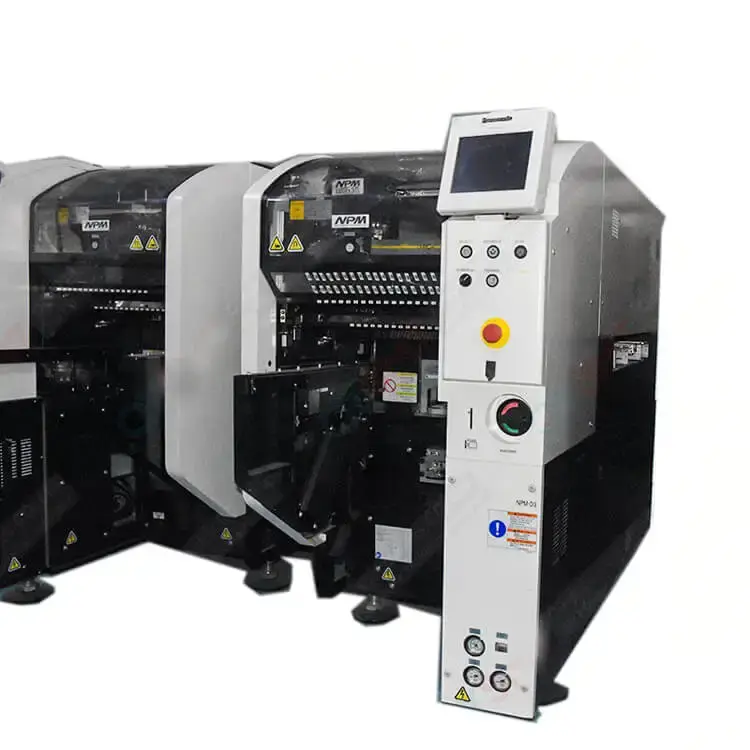

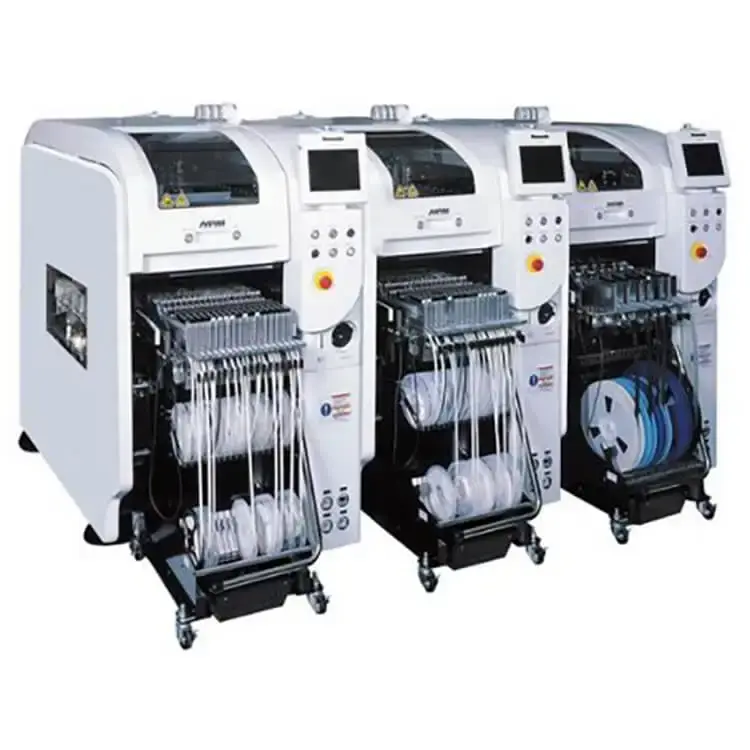

Hot sell new Multi-head SMT mounting machine pick and place machine NPM D3

Product Description



Features & Benefits

Plus new enhancements:

• Compact footprint - scale production to your factory needs

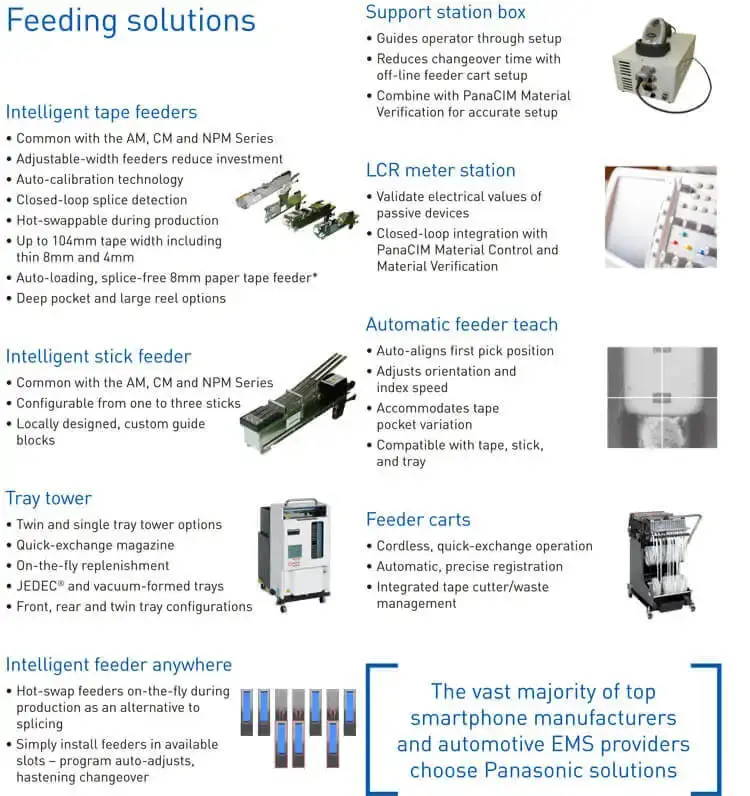

• Quick-change feeder carts, nozzle banks, and process heads
• Compatible with CM- & AM-series intelligent feeders & nozzles
• Board warp detection, Adaptive Process Control (APC), and Auto Board Support Pin

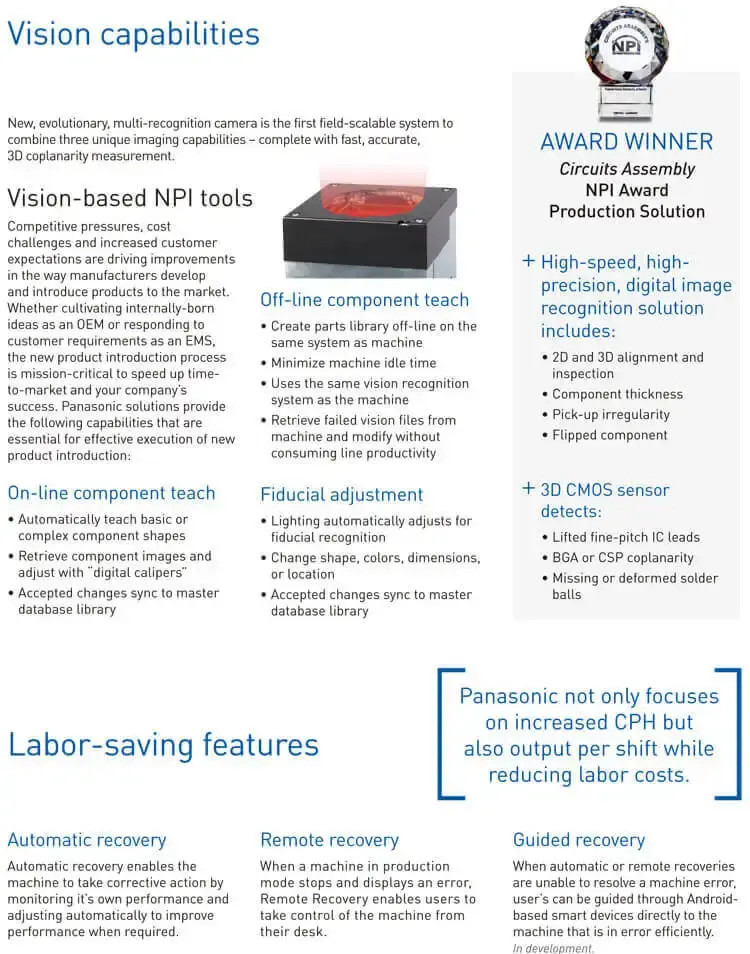

• Industry's first 3D Multi Recognition Camera
• Lightweight 16-nozzle head (for 84,000 CPH)
• Increased placement accuracy to 25um (cpk ≥1.0)



Company Information

item	value
Condition	New
Place of Origin	Japan
Model Number	NPM-D3
Warranty	1 YEAR
Name	pick and place machine NPM D3

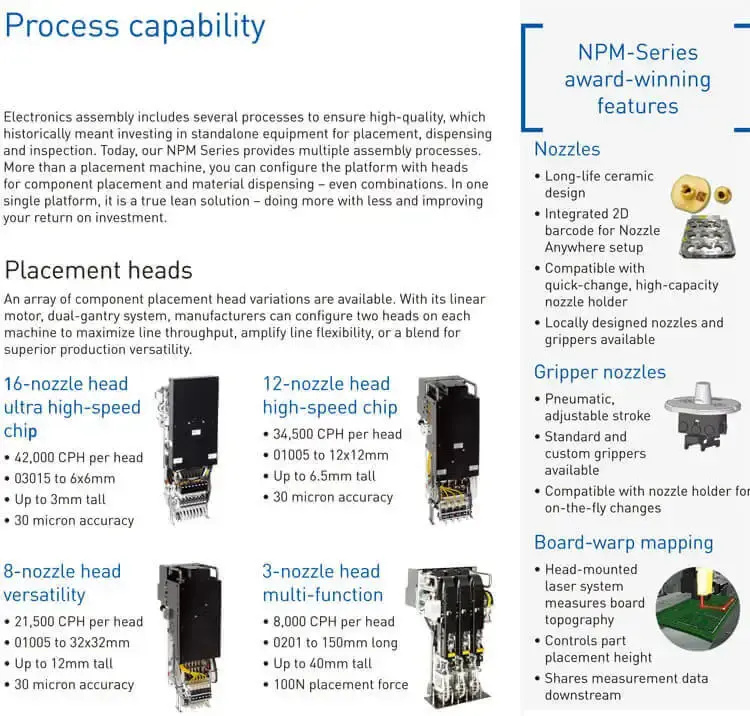

Head Design Options	In-line array of 16-, 12-, 8-, 3-, or 2-nozzle heads
Process Head Options	Dual-syringe Dispense, 2D AOI/SPI (High/Low Res)
Component Alignment	Multi-Recognition Digital Camera
Board Dimensions (Single Lane)	510x590mm (Std)
Board Dimensions (Dual Lane)	510x300mm (Std) 650x300mm (Opt)
Mounting speed (ideal)	Up to 84,000 cph
Mounting speed (IPC9850)	63,300 cph (1608C)
Placement accuracy	±25 microns Cpk ≥1.0
Component Range(Min)	03015mm microchip
Component Range(Max)	100x90mm (3.9x3.5")
Component Range(Height)	40mm (1.57")
Feeder Capacity	68 Reels
Feeder Capacity	20 Trays
Dimension	W 832 x L 2,652 x H 1,444mm
Weight	1,900kg (Body + 2 Carts)

that in the process in motion More stable XY-axis motion using a high-speed low-vibration design.

linear motor with a new cooling design, in the case of high-speed movement more quickly than other devices using linear motors Efficient cooling, ensure that the operation efficiency of the motor, increase its life.7 kinds of rack can correspond from 8mm - 104mm all current industry best rack universal applicability widest taping element is Pan equipment. And the new addition of 8mm single rack according to customer demand. rack switching operation, the overall exchange trolley design, the overall design of the support pin exchange etc. can greatly improve the operation efficiency of equipment and aircraft.
