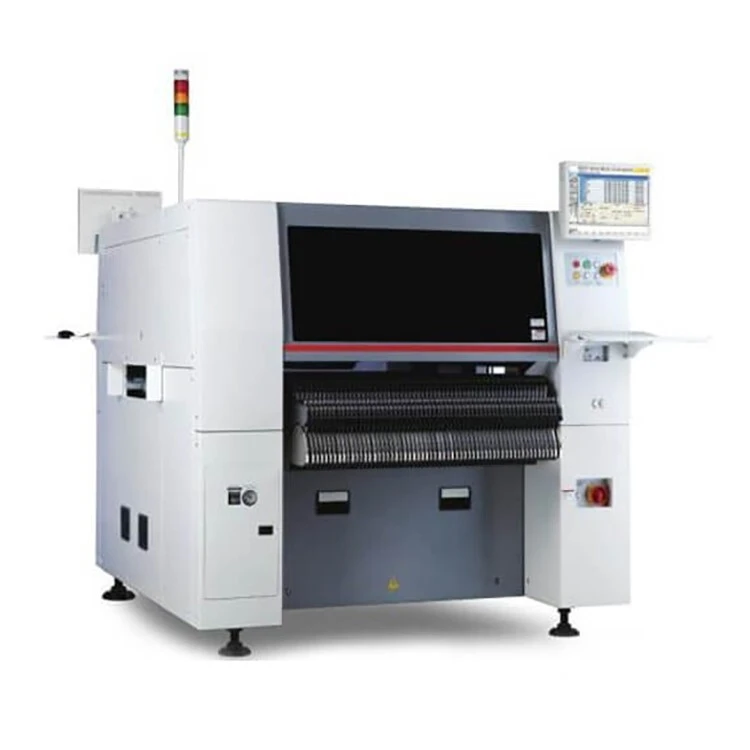

Hanwha SM471 Plus Pick and Place Machine
Hanwha SM471 Plus Pick and Place Machine,Component Range:0402 above, Patch speed 78,000 CPH,2 Gantry x 10 Spindles/Head, weight 1820KG
Component Range: 0402(01005
Patch speed 78,000 CPH
2 Gantry x 10 Spindles/Head
Weight 1820KG
Component Range: 0402(01005
Patch speed 78,000 CPH
2 Gantry x 10 Spindles/Head
Weight 1820KG
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
| Specifications | SAMSUNG SMT pick and place machine | ||
| Model Name | SM471plus | SM481plus | SM482plus |
| Alignment | Flying Vision | Flying Vision+stage vision | Flying Vision+stage vision |
| Spindles | 10 Spindles × 2 Gantries | 10 Spindles × 1 Gantry | 6 Spindles × 1 Gantry |
| Placement Speed | 78,000CPH(Optimum) | 40,000CPH(Optimum) | 30,000CPH(Optimum) |
| Placement Accuracy | ±40μm@μ±3σ | ±40μm@μ±3σ | ±40μm@μ±3σ |
| Applicable Parts | 0402 ~ 14mm(H 12mm) | 0402 ~ 42mm(H 15mm) | 0402 ~ 55mm(H 15mm) |
| Applicable PCB(L × W) | Max. 510 × 460(Standard) | Max. 460 × 400(Standard) | Max. 460 × 400(Standard) |
| Max. 610 × 460(Option) | Max. 1500 × 460(Option) | Max. 1200 × 510(Option) | |
| Dimension(L.D.H) | 1650×1690×1458 | 1650×1680×1530 | 1650×1680×1458 |
| Mass(Kg) | Approx. 1820 | Approx. 1655 | Approx. 1600 |
