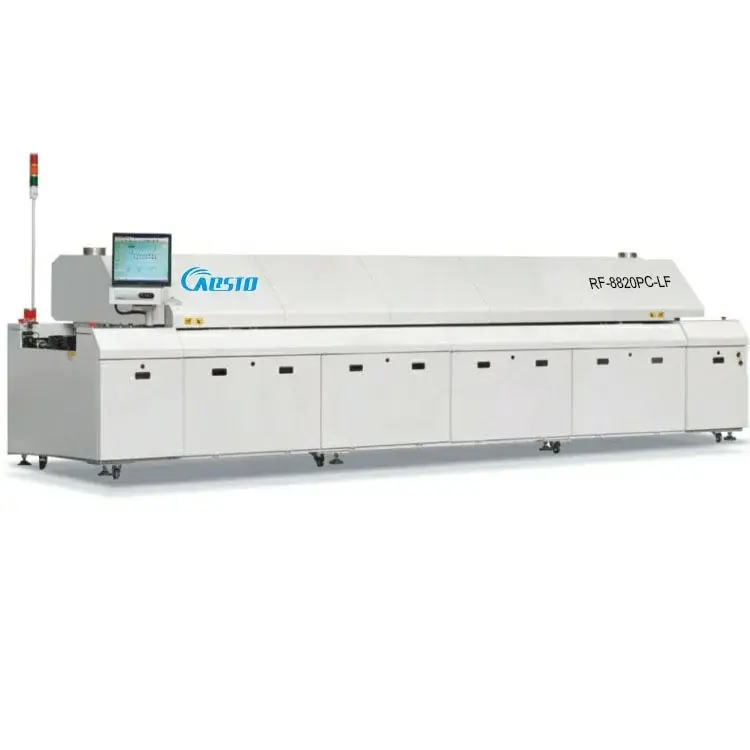

High Quality Soldering Reflow Oven Provided YFX Machine Brand

Product details of the soldering reflow oven

Product Specification

Video outgoing-inspection: Provided

Temperature control mode: PID control + SSR drive

Marketing Type: Ordinary Product

Voltage: 380

Core Components: PLC, Engine, Bearing, Motor, Gear

Product Introduction

The material itself of soldering reflow oven has no pollution to the environment. The product has been tested for multiple times to be good in its performance and functionality. Promising application prospect and tremendous market potential can be seen from this product.

Detailed description

Transporting system

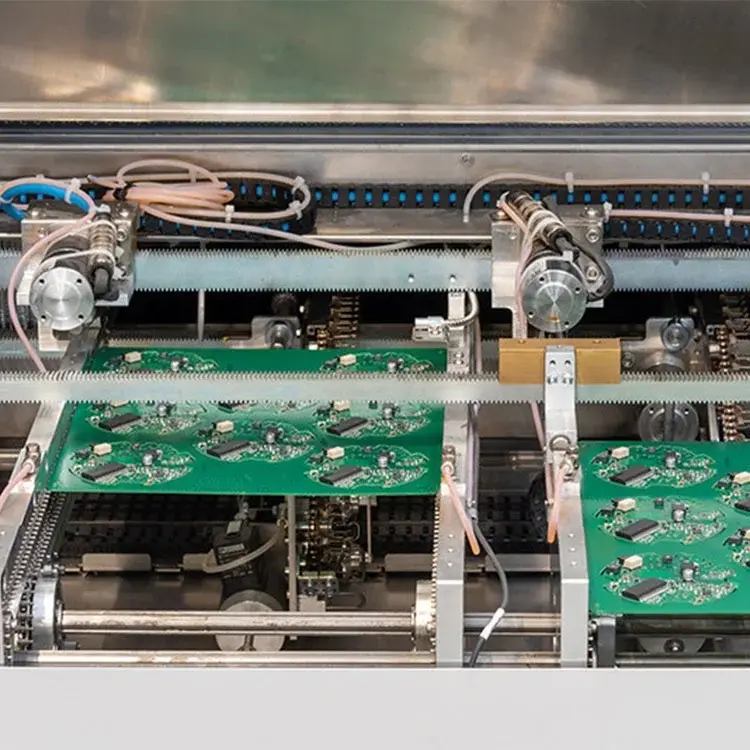

1. Transmission Mode of PCB     ▶  VSVF (Stepless Variable-Speed Variable-Frequency)    ▶  Synchronized Mesh belt and Chain Rails    ▶   Excellent Stability

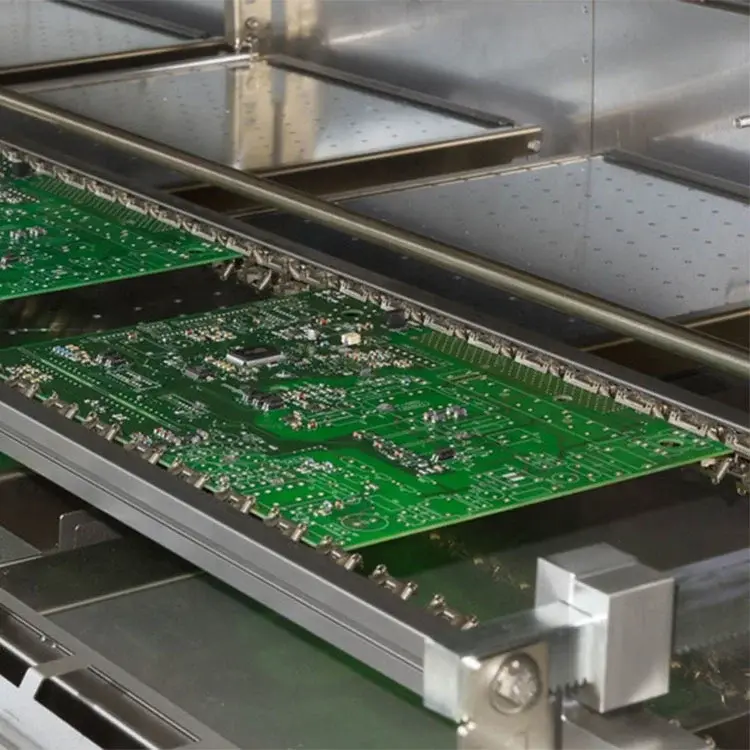

2. The Chain Rails     ▶  Special quality aluminum made    ▶  Automatic refueling system    ▶  Accuracy of the rail width adjustment    ▶  Long service life

Soldering System
1. Good at soldering CSP, BGA, 0201CHIP and so on.
2. 16 heating zones & 2 cooling zones.     ▶  Soldering temperature of each heating zone is independent control and adjustable.     ▶  Up and bottom hot air heating ensures the uniform soldering temperature and solve the dead angle problem.
3. Less than 20 minutes pre-heating time.
4. Optimum design of muti-layer heat insulation     ▶   reduce the heat loss.     ▶   decrease the fuel consumption.     ▶   save the cost and improve the heating efficiency.

Structure System
1. Modular design, easy to installation and maintenance. 2. Less than 6 kg power can open the upper cover of the machine. 3. Use pneumatic power to automatic lift the furnace. 4. Safety bar to support the furnace.

Security System

1. Over-temperature alarm and automatically stop heating to protect the machine and PCB boards. 2. On-line UPS to protect the power failure and ensure the normal output of the PCB.

Control System

1. Computer Control & Emergency Manual Control. 2. Windows Operation Interface with English and Chinese Language. 3. PC + PLC Full Automatic Control, stable and accurate.

Temperature Monitoring System

1. Whole - process monitoring .     ▶  Monitor the PCB temperature during the whole soldering period.

2. Real time monitoring .     ▶  The changing temperature in every second can be noticed , collected and generated a data curve.

3. Intelligent monitoring     ▶   PID temperature control system can automatically keep the temperature curve goes like the one you set.     ▶  The temperature curve of the soldering are stored in the computer for whenever you use it.

Cooling System

1. 2 cooling zones. 2. Forced air cooling system and convective circulation to keep motors temperature ≤ 38℃. 3. Independent control cooling system.  4. Temperature of the output PCB boards is ≤ 60℃.
