Hot Pick and Place Pcb Machine PCB Auto Dividing Process YFX Machine Brand

Product details of the pick and place pcb machine

Product Specification

Condition: New

Video outgoing-inspection: Provided

Program record mode: 100group,999points per group

Application: PCB auto dividing process

Machinery Test Report: Provided

Quick Overview

YFX Machine pick and place pcb machine is fabricated using quality raw materials and advanced production technology. We take steps to improve the quality of the product as much as possible. pick and place pcb machine, one of YFX's main products, is deeply favored by customers. With wide application, it can be applied to different industries and fields. As one of leading manufactures in China, Shenzhen Yufuxin Technology Co., Ltd. sets high demand on quality of pick and place pcb machine.

Product Information

Compared with similar products, our pick and place pcb machine is provided with the following competitive advantages.

BBA Automatic PCBA separation machine PCB router equipment Panelized PCB cutting for Multi circuit board separation process

PCB depanelling equipment, also referred to as singulation, is the process of separating printed circuit board (PCB) assemblies from large fabricated panels into individual PCB units. These machines are essential in streamlining the production process, reducing the risk of damaging components, and ensuring clean and precise separation.

*High-Quality Blades: Durable, sharp blades that can handle frequent use without dulling quickly. *Variable Speed Control: Adjust the cutting speed to suit different materials and complexities. *Smooth Operation: Ensures minimal stress and damage to the PCB components during separation. *High Precision Cutting: Ensures clean, accurate separations with minimal burrs or rough edges.

Products Description

Machine external accessories

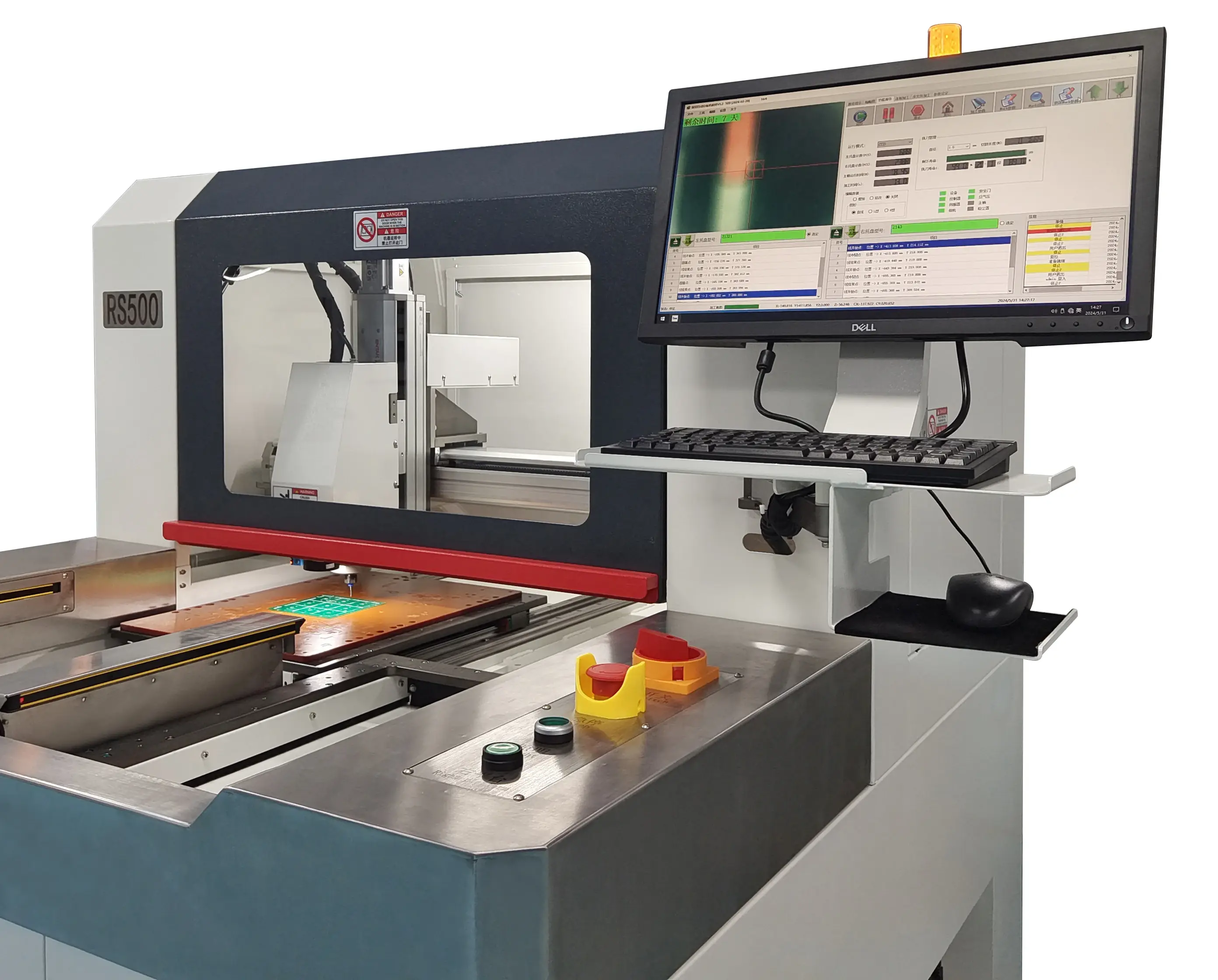

Windows operating system

*Windows 10 operating system
*Stable&safe
*Easy to learn and use

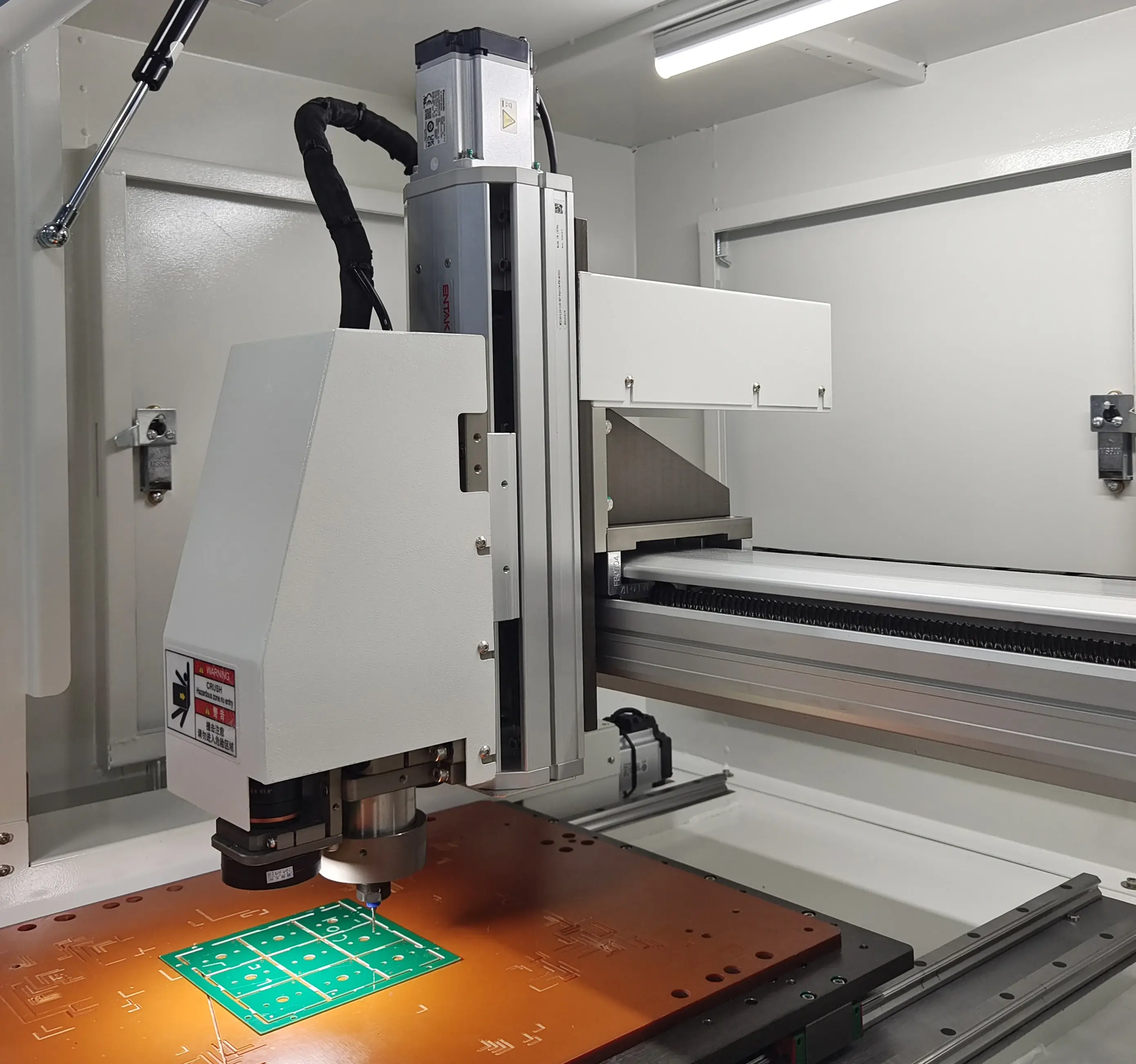

**Using a high-speed spindle, the cutting stress is small, the precision is high, and it is suitable for PCBA boards of any shape.

**The machine is equipped with a CCD automatic optical alignment system to ensure cutting accuracy.

**The dual working platform can perform panel cutting and circuit board placement at the same time, improving work efficiency.

**Patented high-efficiency dust collection device, low noise, fast efficiency, easy maintenance and cleaning.

Customization available

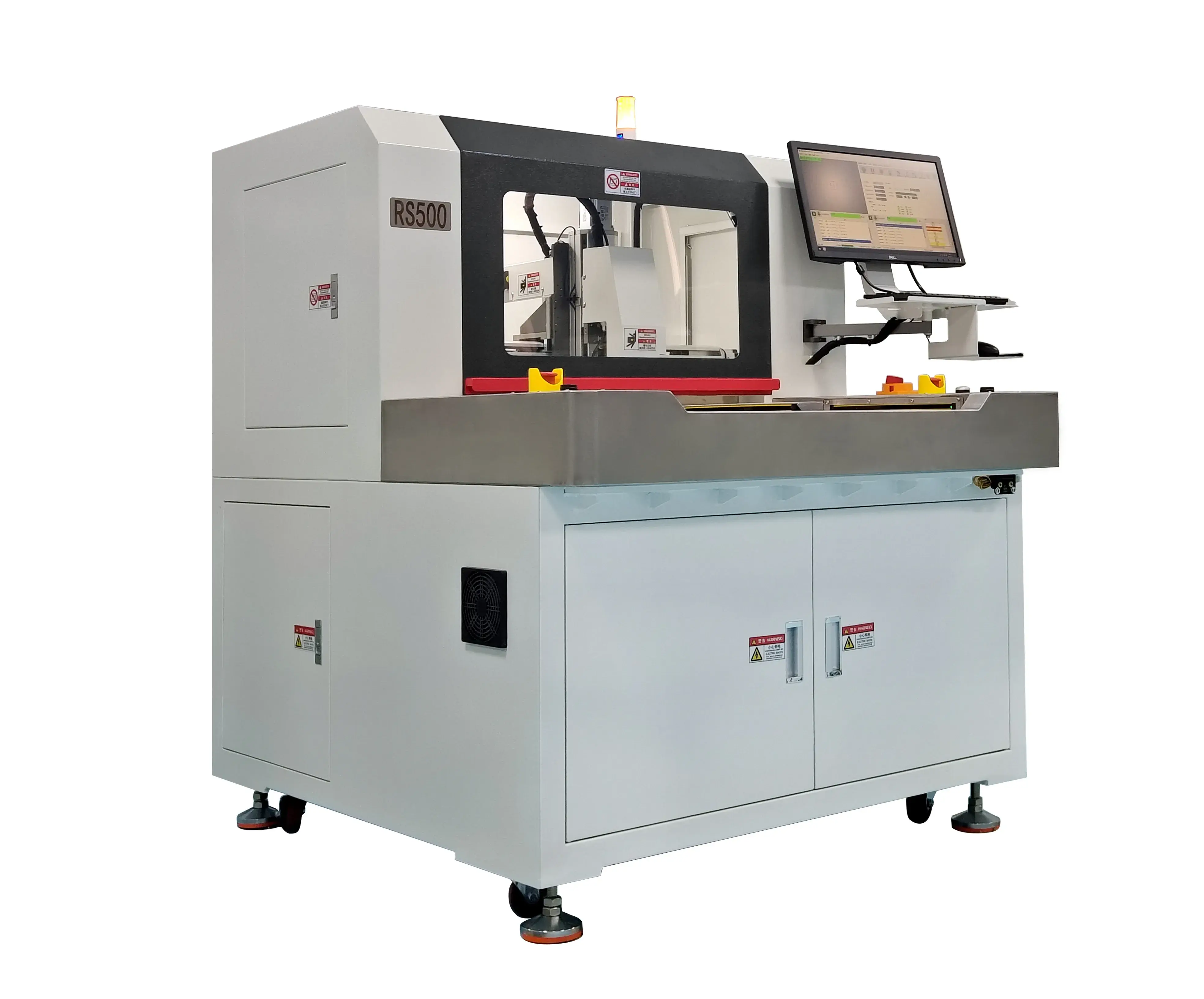

Specification of PCB Separator Machine

Model	RS-500	RS-500L
Machine Dimension	1240x1050x1450mm(L*W*H)	1380x1591xX1450(L*W*H)
Effective Cutting Dimension	350x380mm(L*W)	450x600mm(L*W)
Working Platform	Double	Double
Machine Repeatability Accuracy	±0.01mm	±0.01mm
Cutting Accuracy	±0.05mm	±0.05mm
Maximum Movement Speed	XY:1000mm/s    Z:300mm/s	XY:1000mm/s   Z:300mm/s
Maximum Movement stroke	X :750mm,  Y:510mm,  Z :100 mm	X:750mm, Y :510mm,  Z:100mm
Spindle Rotating speed	MAX.60000RPM (adjustable)	MAX.60000RPM (adjustable)
Milling cutter replacement method	Manual replacement (Default)/ Automatic replacement (Optional)	Manual replacement (Default)/ Automatic replacement (Optional)
Cutting Speed	1~100mm/s  (adjustable)	1~100mm/s (adjustable)
Operation Interface	Window10 system operation interface	Window10 system operation interface
Programming Method	Color CCD image visual teaching input	Color CCD image visual teaching input
Program Backup	one click recovery	one click recovery
XYZ Axis Drive Mode	AC servo motor	AC servo motor
Dust Vacuum Machine Power	Upwards vacuum 4P (3KW) Upwards vacuum 6P (3KW) Downwards vacuum 3HP (2.2KW) Downwards vacuum 5HP (3.75KW)	Upwards vacuum 4P (3KW) Upwards vacuum 6P (3KW) Downwards vacuum 3HP (2.2KW) Downwards vacuum 5HP (3.75KW)

Customer case

Packing & Delivery

Company Profile

BBA machine headquartered in Guangdong, China. The manufacturer of automation machines. Main products are auto screw fastening machine, soldering machine, screw feeder machine, glue dispensing machine, PCB pin foot cutting machine and other non-standard automation equipment. BBA has accumulated rich engineering experience and master full set of core technology, can provide customers with full services from technology to equipment.In addition, we have a professional screw tightening technology, which is very helpful for mass production of screw locking, including special screw as the helico coiled screw and headless screws. In the automation solution providing and other fields have been unanimously recognized by users.

Over the past years, BBA have actively expanded the oversea market, with users all over America&Europe&Southeast Asia. The good atmosphere of the enterprise attracts a large number of outstanding talents, which makes the high-quality company with a highly cooperative professional team.

FAQ

Q: Why choose us?
A: We are factory and provide overall solutions for processing equipment. Our standard equipment is very complete,all are in stock and can be shipped quickly. We have our own equipment factory, which can fully customize equipment according to customer requirements, such as ordering different machine size& appearance and brand for agents.
Q: How can we guarantee quality?
A: We implement strict incoming materials inspection and 100% tests before shipment. Furthermore, our products have CE certificate.
Q: How long is your warranty?
A: Lasts for 12 months, lifetime technical support.
Q: Why need use automatic PCB depanelling machine?
A: Precise pcb cutting performance, high efficiency, save labor cost, raise productivity.
Q: What PCB can be used for PCB Router Separator machine?
A: V-cut, Stamp hole PCB, Hollow connecting strip
Q: What's the bulk order delivery time?
A: Order lead time will be 3~15 working days, depends on your product.
