New Smt Line Manufacturers Price List
Product details of the smt line manufacturers
Product Specification
Apply to: Soft Lamp Strip
Applicable components: 0402~5050
Part number: CL Feeder
Condition: New
Product name: Assembly Production Line
Quick Overview
Using the latest technology and high-grade materials,YFX Machine smt line manufacturers is manufactured in compliance with guidelines of fine production methods. It has been proved that the assorted equipment of smt line manufacturers is of stable quality. The product has a considerable influence on the customers for its wide range of application prospects.
Product Description
The quality of YFX's smt line manufacturers is better than the quality of its peer products. It is shown in the following aspects.

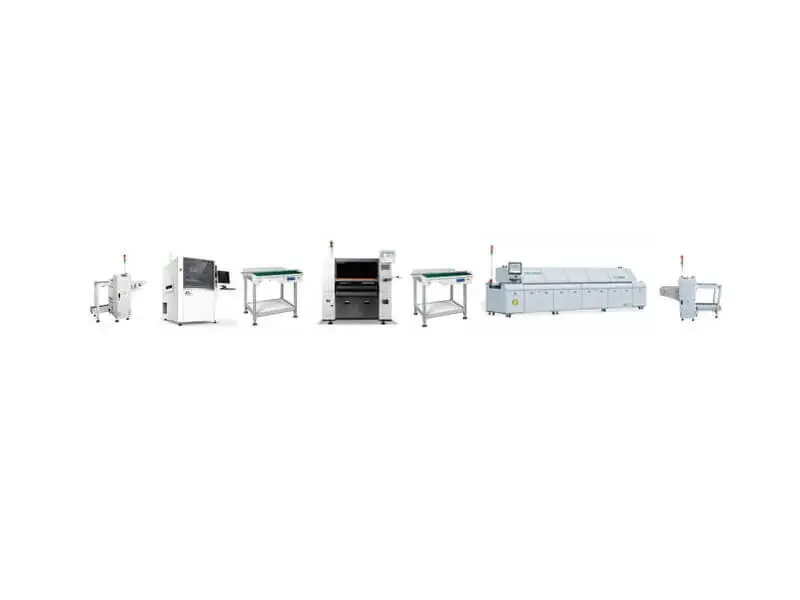

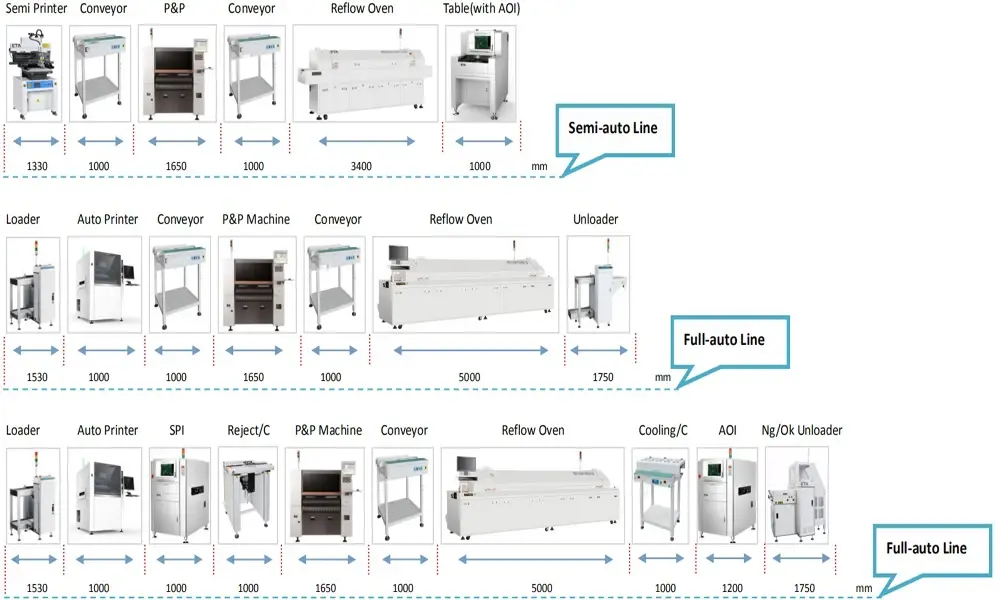

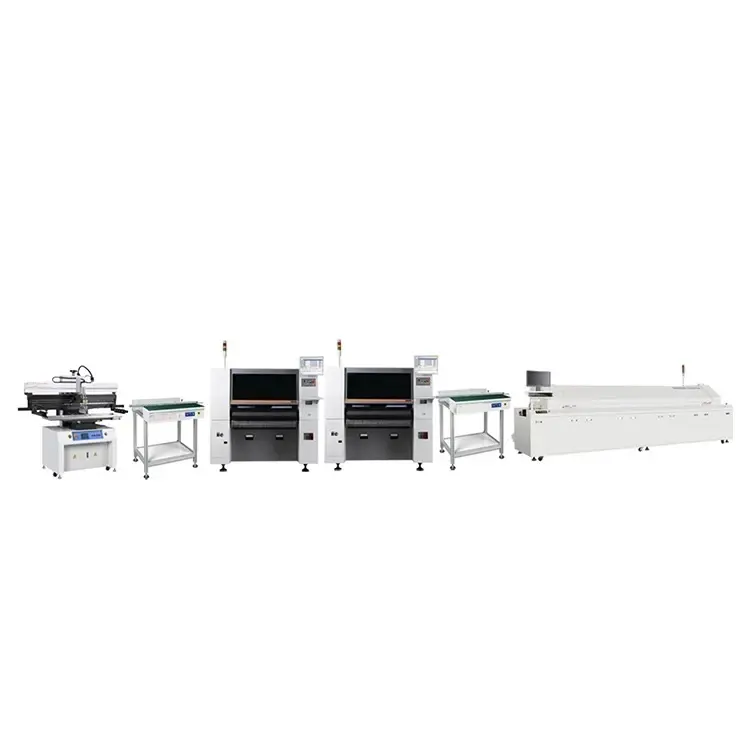

Semi-auto SMT PCB Assembly Production Line SM481
SM481 Plus SMT Assembly line, with Automatic solder paste printer, SM481 plus pick and place machine reflow oven, the production speed is around 40000 CPH. really suitable for Mobile phone, LED light production, communication, LCD TV, STB, family cinema, vehicle electronics.
1. Hanwha SM481 Plus Pick and place machine
As a general component placer whose vision system is reinforced based on the platform of the SM471 high speed chip shooter and whose chip placement speed is the highest among the same class component placers, the SM481 Plus realized achip placement speed of 40,000 CPH, the highest among the same class component placers, by applying a head with one gantry and ten spindles as well as new flying vision and by maximizing the pickup and placement motion.
In addition, it is applicable up to 0402 chips and 42mm ICs. It has improved actual productivity and placement quality by applying high speed and high precision electrically driven feeders. Furthermore, since it is designed to be compatible with SM series pneumatic feeders, it maximizes the customer’s operational convenience.
Semi-auto SMT Stencil Printer
Using linear guide-ways, matching motor drive speed, ensure the printing stability and precision.
Blade pressure and printing speed is asjustable, precision pressure gauge, speed controller display.
Modular universal bench, thimble random placement, easy conversion.
With alignment device for PCB board and frame.
| Model | P3 | P6 | P12 |
| Accuracy | +/- 0.05mm | +/- 0.05mm | +/- 0.05mm |
| PCB Size | 300 x 350 mm | 600 x 350 mm | 1200 x 350 mm |
| Platform size | 300 x 350 mm | 700 x 400 mm | 1350 x 400 mm |
| Stencil Size(mm) | 370*470,550*650 | 370*470,550*650 | 370*470,550*650,1500*650 |
| PCB Thickness | 0.2 - 6 mm | 0.2 - 6 mm | 0.2 - 6 mm |
| Stencil Positioning | Manual | Manual | Manual |
| Cycle Time | < 10 Sec. | < 10 Sec. | < 12 Sec. |
| Power Consumption | 200 W | 200 W | 200 W |
| Power Supply | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ | 1 -PH, 220VAC 50/60HZ |
| Air Pressure | 4.5-6 kg/cm | 4.5-6 kg/cm | 4.5-6 kg/cm |
| Squeegee Speed | 0-1500mm/sec | 0-1500mm/sec | 0-1500mm/sec |
| Dimension | 850x750x1650 mm | 1050x750x1650 mm | 1660x750x1650 mm |
| Weight | 280 Kg | 300 Kg | 356 Kg |
| Squeegee Length | 250mm | 250mm | 250mm |
| Platform Height | 950mm | 950mm | 950mm |
| Option: Special size can be customized | |||
Reflow Oven
High effective flux management system
High stability nitrogen protection system
High performance cooling system
