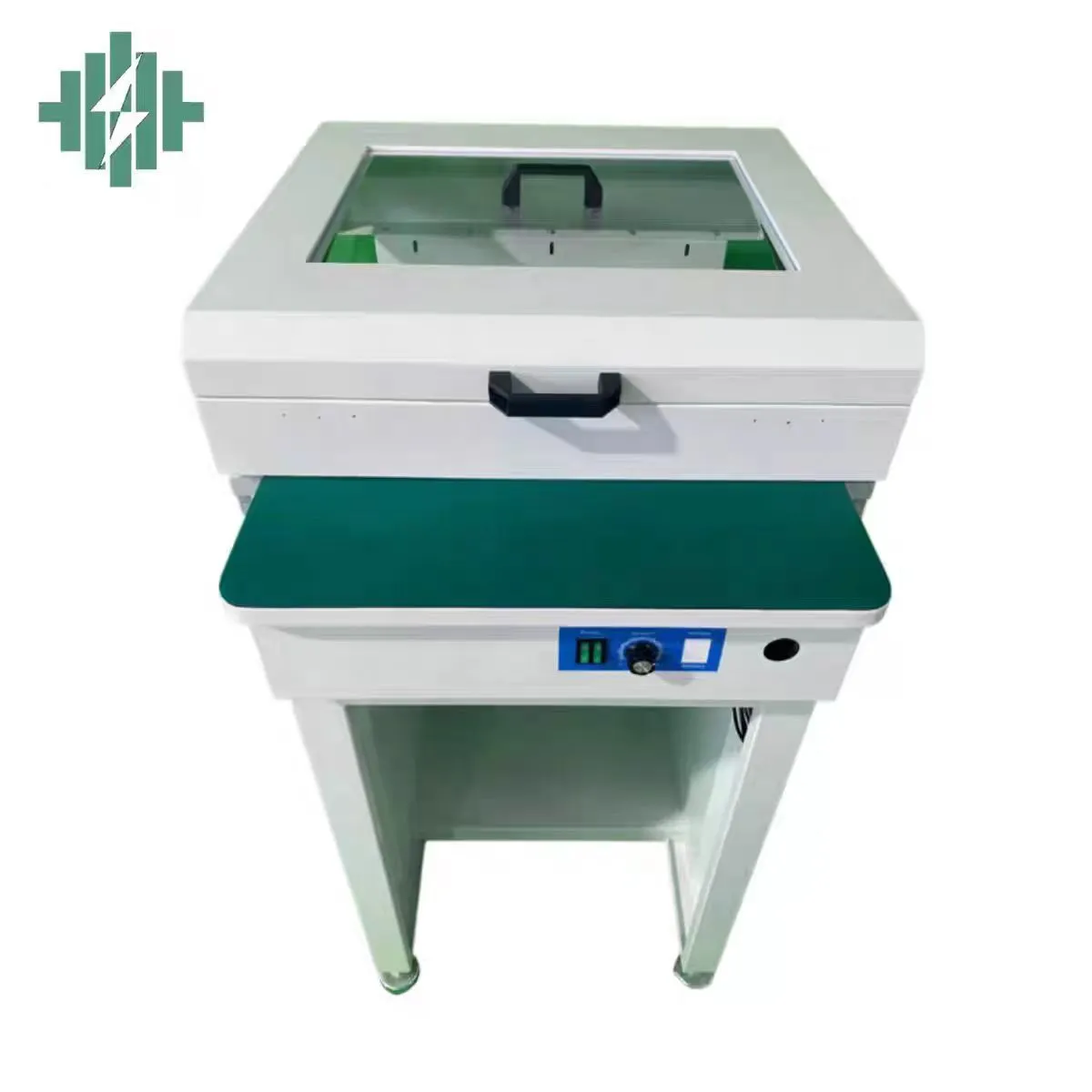

Smt Pcb Conveyor
PCB Conveyor is used in SMT assembly line to transfer the PCB automaticly between SMT equipments. Normally there need PCB conveyor beside these machines: automatic solder paste printer,pick and place machines,SPI, automatic AOI,reflow Ovens etc.
1 Modular design, optional assembly as per client’s requirement.
2 Rugged steel design, improves equipment stability .
3 Smooth stainless steel screw to adjust the width of the rail.
4 Variable speed control.
5 Circuit board testing mode.
6 Using a dedicated aluminum slot for transfer orbit to prevent PCB stuck.
7 Heavier bottom design, not easily shift.
8 Machine length can be customized.
9 Compatible with SMEMA interface.
Specification:
|
Standard SMT link/inspection Conveyor |
||||||
|
Rail Length(mm) |
500 mm |
600 mm |
1000 mm |
1200 mm |
1500 mm |
2000 mm |
|
Dimension (mm) |
500*700*950 |
600*700*950 |
1000*700*950 |
1200*700*950 |
1500*700*950 |
2000*700*950 |
|
PCB Width |
50 to 350 mm |
|||||
|
PCB Direction |
L to R or R to L |
|||||
|
Speed |
Adjustable |
|||||
|
Switch |
Foot Switch |
|||||
|
Control System |
PLC |
|||||
|
Lighting |
Optional |
|||||
|
SOP Rack |
Optional |
|||||
|
Platform Material |
ESD Rubber Mat |
|||||
|
Communication |
SMEMA for both in & out |
|||||
|
Power Supply |
1 PH AC 220V 50/60Hz (Option:110V to 380V) |
|||||
|
Weight |
70 Kg |
75 Kg |
95 Kg |
105 Kg |
125 Kg |
150 Kg |
We are committed to producing the best quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
