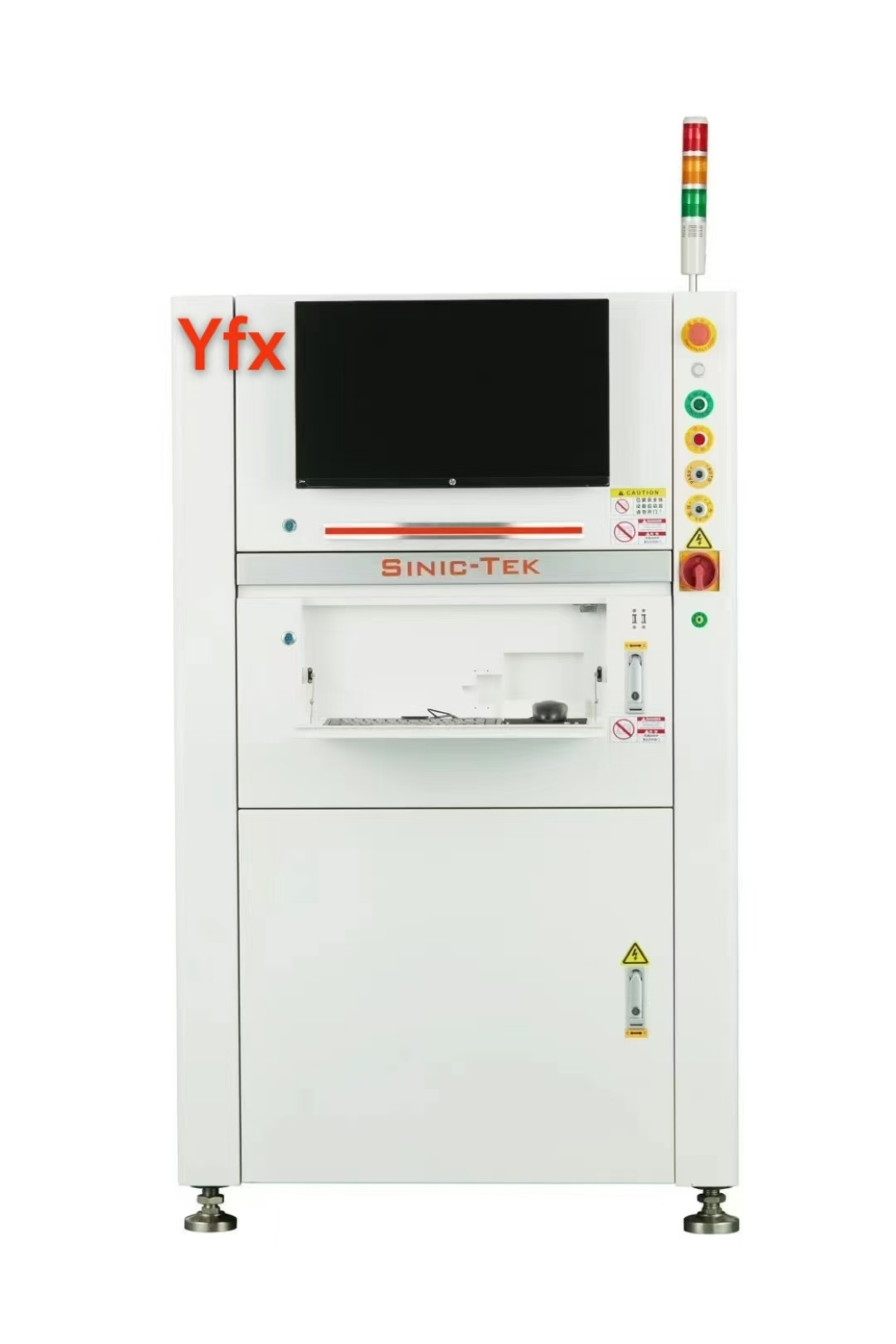

YFX Machine - Professional SMT machine manufacturer providing one-stop solution.
The number one fully automated online SPI
Flexible or fixed track setup before track fixation
PCB transfer direction from left to right or from right to left
Track width adjustment manual, automatic as option
Software language Chinese/English
Program software gerber (RS-274X, RS274D), CAD
Program time < 5 minutes
Program fine-tuning time < 5 minutes
Cable change time < 5 minutes
User-friendly interface, WINDOWS style, easy to operate
Diagnostic standard configuration
SPC statistical histogram; Xbar-R diagram; Xbar-S diagram; CP&CPK; %Gage repeatable data; SPI daily/weekly/monthly report
Gerber & CAD data import support Gerber format (274x,274d); Manual Teach model;
CAD X/Y, part number, package type import
Network technology requirements support TCP/IP protocol, image instant transmission, does not affect the use of
Computer Type High performance IPC computer
The computer is configured with the cpu intel I7
ram 24g
gpu 2g discrete graphics
Hard disk 1t
DVD+ rw standard
Operating System Windows 10 Professional(64-bit)
24 inch LCD display
Input device: mouse, keyboard
Equipment size and weight w1000 *D1150*H1530mm; 965KG
Power 220v, 10
Air pressure 4~6Bar
Power (Start/Normal) Start :2.5kw/Normal operation :2kw
Loading requirement
Floor weight 500kg/m²
Grounding resistance The grounding cable is required
Standard SMEMA interface
The safety protection system is equipped with a comprehensive safety indication and interlocking system
We are committed to producing the best quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
