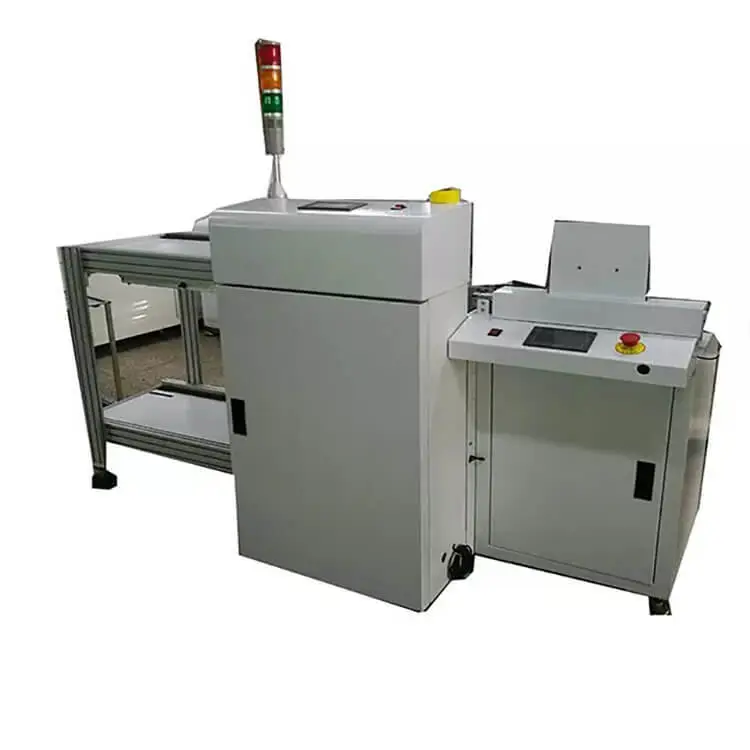

Latest SMT line production PCB destacker bare board loader
1. Closed sheet metal and aluminum alloy design structure to ensure the highest level of safety protection
2, standard anti-static material frame upper plate and vacuum suction plate to send plate two functional modes to choose, while meeting the double-panel and light plate feeding operation
3,The nozzle is positioned by a universal moving device, and the suction seat can be adjusted according to the characteristics of the PCB board and the hole position.
4,The top safety cover can be opened for easy handling of the machine hardware during maintenance
5,Easy to use touch screen function control interface
6, Adjustable nozzle position ensures clamping of the board
7,Robust balanced width adjustment (hand crank control screw adjustment)
8,Microcomputer Panasonic PLC control system, stable and reliable.
9,The touch screen display operation has automatic fault diagnosis function, and the man-machine dialogue is convenient.
10,Multiple sound and light and touch screen alarm function
11,The rack lifting step can be set according to the thickness of the PCB.
12,Three-point positioning up and down pneumatic clamping ensures accurate bin position.
13,Push plate protection system ensures that PCB board will not be pushed and damaged, reducing process loss
14,User-friendly design ensures that PCB boards are not broken and improve output capacity
15,Smaller machine footprint
16,Compatible SMEMA interface
Technical Parameters:
|
description |
This device is used for the upper plate operation of the production line light board and double-sided circuit board. |
|
Maximum board capacity |
300 pieces (0.6 mm thick circuit board) |
|
Cycle Time |
About 8 seconds |
|
power supply |
220-230V communication (user specified), single phase |
|
Electrical load |
180 volts maximum |
|
Gas pressure |
4-6 bar |
|
air flow volume |
Up to 30 liters / minute |
|
Transfer height |
900±20mm (or user specified) |
|
Transfer direction |
Left → right or right → left (optional) |
Specifications:
|
Model |
SD-8350 |
|
|
|
(50x50)~(350x250) |
|
|
Dimension |
1550x1050x1250
|
|
|
Weight |
Approx.260kg |
We are committed to producing the best quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
